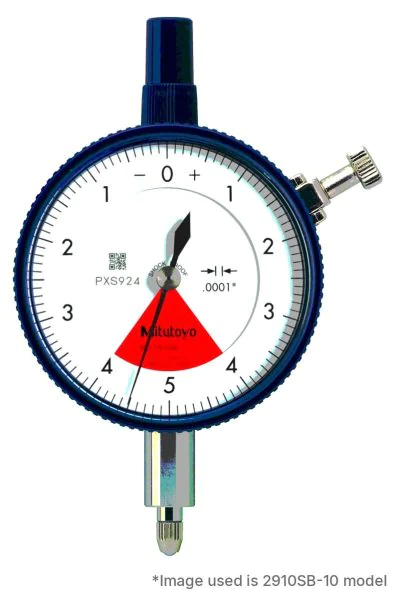

Mitutoyo 2910A-10 One Revolution Dial Indicator, Graduation .0001", Range .008"
Code
2910A-10
Categories: Default Category, Dial Indicators
| Manufacturer | Mitutoyo |
|---|---|
| Range | 0-0.008" |
| Dial Revolution | 0.01" |
| Dial Reading | 4-0-4 |
| Measuring units | Inch |
| Dial Face Diameter | 57mm |
| Accuracy | 0.0001" |
| Stem Diameter | 3/8" |
| Measuring Force | 1.8N |
| Contact Point | No. 4-48 UNF thread |
| Country of Manufacture | Japan |
The Mitutoyo 2910A-10 is a one revolution dial indicator, which avoids misreading because the pointer never turns more than once over the full range. Part of the Mitutoyo Series 1/2 range, it is built with a quench-hardened stainless steel stem and spindle for heavy-duty use, and a sealed bezel and crystal to keep out water and oil.
- Measuring range: .008"
- Range per revolution: .01"
- Graduation: .0001"
- Dial reading: 4-0-4
- Maximum permissible error (overall): ±.0001" / — / —
- Hysteresis: .0001"
- Repeatability: ±.00003"
- Measuring force: 1.8 N or less
- Bezel diameter: 57mm
- Stem diameter: 3/8"
- Contact point: carbide, No. 4-48 UNF thread
Accuracy is inspected with the indicator vertical, contact point downward. Optional bezel clamps, limit hands, lifting levers and alternative contact points are available.
Suitable for comparative measurement, run-out and flatness checks, height comparison on a stand and use in gauging fixtures.
