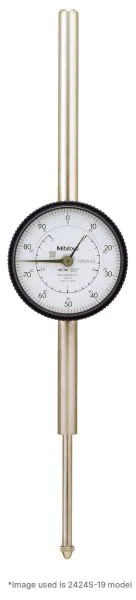

Mitutoyo 2424A-19 Long Stroke Dial Indicator, Graduation .001", Range 2"
Code
2424A-19
Categories: Default Category, Dial Indicators
| Manufacturer | Mitutoyo |
|---|---|
| Range | 0-2" |
| Dial Revolution | 0.1" |
| Dial Reading | ±0-100 |
| Measuring units | Inch |
| Dial Face Diameter | 57mm |
| Accuracy | 0.001" |
| Stem Diameter | 3/8" |
| Measuring Force | 2.5N |
| Contact Point | No. 4-48 UNF thread |
| Country of Manufacture | Japan |
The Mitutoyo 2424A-19 is a long stroke dial indicator with a 57 mm bezel, for measuring larger displacements in a single setting. Part of the Mitutoyo Series 2 range, it is built with a quench-hardened stainless steel stem and spindle for heavy-duty use, and a sealed bezel and crystal to keep out water and oil.
- Measuring range: 2"
- Range per revolution: .1"
- Graduation: .001"
- Dial reading: ±0-100
- Maximum permissible error (overall): ±.001" / ±.001" / ±.002" / ±.003" (first 20 rev)
- Hysteresis: .00033"
- Repeatability: ±.0002"
- Measuring force: 2.5 N or less
- Bezel diameter: 57mm
- Stem diameter: 3/8"
- Contact point: carbide, No. 4-48 UNF thread
Accuracy is inspected with the indicator vertical, contact point downward. Optional bezel clamps, limit hands, lifting levers and alternative contact points are available.
Suitable for comparative measurement, run-out and flatness checks, height comparison on a stand and use in gauging fixtures.
