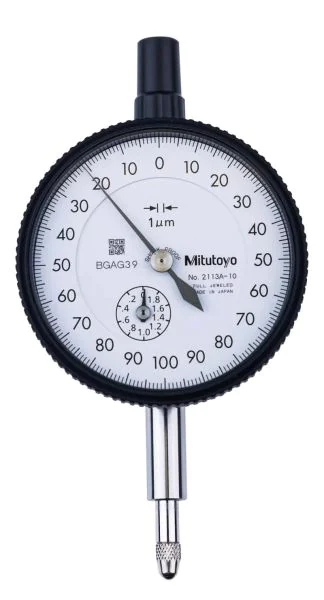

Mitutoyo 2113A-10 Dial Indicator, Graduation 0.001mm, Range 2mm
Code
2113A-10
Categories: Default Category, Dial Indicators
| Manufacturer | Mitutoyo |
|---|---|
| Range | 0-2mm |
| Dial Revolution | 0.2 mm |
| Dial Reading | 0-100-0 |
| Measuring units | Metric |
| Dial Face Diameter | 57mm |
| Accuracy | 7 µm |
| Stem Diameter | 8mm |
| Measuring Force | 1.5N |
| Contact Point | M2.5 thread |
| Country of Manufacture | Japan |
The Mitutoyo 2113A-10 is a fine graduation dial indicator with a 57 mm bezel, using a special alloy sector gear for excellent sensitivity and long life. Part of the Mitutoyo Series 2 range, it is built with a quench-hardened stainless steel stem and spindle for heavy-duty use, and a sealed bezel and crystal to keep out water and oil.
- Measuring range: 2 mm
- Range per revolution: 0.2 mm
- Graduation: 0.001mm
- Dial reading: 0-100-0
- Maximum permissible error (overall): 7 μm
- Hysteresis: 2 μm
- Repeatability: 0.5 μm
- Measuring force: 1.5 N or less
- Bezel diameter: 57mm
- Stem diameter: 8mm
- Contact point: carbide, M2.5 x 0.45 thread
Accuracy is inspected with the indicator vertical, contact point downward. Optional bezel clamps, limit hands, lifting levers and alternative contact points are available.
Suitable for comparative measurement, run-out and flatness checks, height comparison on a stand and use in gauging fixtures.
