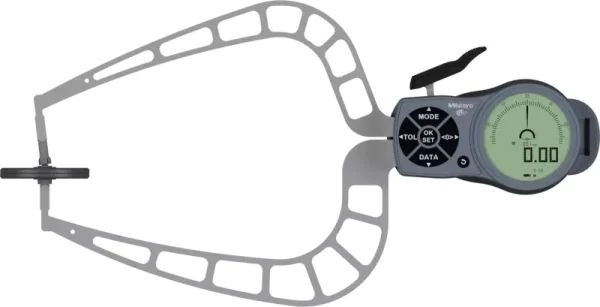

Mitutoyo 209-956 Digimatic Coolant Proof Outside Caliper Gauge, Range 0-50mm, Resolution 0.001mm, Reach 167mm

The Mitutoyo 209-956 is an IP67 coolant proof Digimatic caliper gauge with a choice of arm configurations for measuring grooves and hard-to-reach features and for rapid thickness measurement of flat stock. A bargraph gives an analogue view of the reading, GO/NO-GO judgement shows green or red, and data output connects to SPC systems.

• Measuring range: 0-50 mm
• Resolution: 0.001 / 0.002 / 0.005 / 0.01 / 0.02 / 0.05 mm switchable
• Accuracy: 0.06 mm
• Measuring force: 0.8-1.7 N
• Measuring contacts: Disc measuring face ø50 mm
• Maximum reach of arms (L): 167 mm
• Max. penetration depth, upper contact (A): 36 mm
• Max. penetration depth, lower contact (B): 24 mm
• Protection: IP67
• Power supply: 2x AAA (LR3) batteries
• Functions: Bargraph, GO/NO-GO judgement with green/red LED, data logger (100 values), max/min reading, data output
• Data output: Yes

Made in Japan by Mitutoyo.
