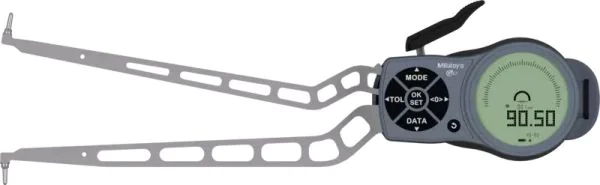

Mitutoyo 209-950 Digimatic Coolant Proof Inside Caliper Gauge, Range 40-90mm, Resolution 0.001mm, Reach 192mm
Code
209-950
Categories: Default Category, Thickness Gauges & Caliper Gauges
| Manufacturer | Mitutoyo |
|---|---|
| Display | Digital |
| Range | 40-90mm |
| Resolution | 0.001mm |
| Measuring units | Inch-Metric |
| Accuracy | 0.05 mm |
| Country of Manufacture | Japan |
The Mitutoyo 209-950 is an IP67 coolant proof Digimatic caliper gauge for measuring internal groove diameters. A bargraph gives an analogue view of the reading, GO/NO-GO judgement shows green or red, and data output connects to SPC systems.
- Measuring range: 40-90 mm
- Resolution: 0.001 / 0.002 / 0.005 / 0.01 / 0.02 / 0.05 mm switchable
- Accuracy: 0.05 mm
- Measuring force: 1.0-1.8 N
- Measuring contacts: Carbide ball ø2 mm
- Maximum reach of arms (L): 192 mm
- Max. groove depth (A): 8.3 mm
- Min. groove width (B): 2.4 mm
- Protection: IP67
- Power supply: 2x AAA (LR3) batteries
- Functions: Bargraph, GO/NO-GO judgement with green/red LED, data logger (100 values), max/min reading, data output
- Data output: Yes
Made in Japan by Mitutoyo.
