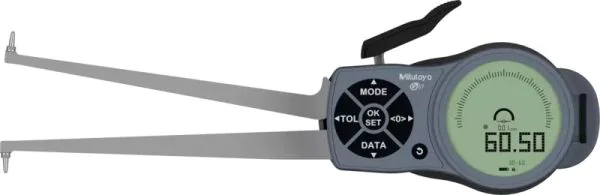

Mitutoyo 209-946 Digimatic Coolant Proof Inside Caliper Gauge, Range 30-60mm, Resolution 0.001mm, Reach 132mm
Code
209-946
Categories: Default Category, Thickness Gauges & Caliper Gauges
| Manufacturer | Mitutoyo |
|---|---|
| Display | Digital |
| Range | 30-60mm |
| Resolution | 0.001mm |
| Measuring units | Inch-Metric |
| Accuracy | 0.04 mm |
| Country of Manufacture | Japan |
The Mitutoyo 209-946 is an IP67 coolant proof Digimatic caliper gauge for measuring internal groove diameters. A bargraph gives an analogue view of the reading, GO/NO-GO judgement shows green or red, and data output connects to SPC systems.
- Measuring range: 30-60 mm
- Resolution: 0.001 / 0.002 / 0.005 / 0.01 / 0.02 / 0.05 mm switchable
- Accuracy: 0.04 mm
- Measuring force: 1.2-1.7 N
- Measuring contacts: Carbide ball ø1.5 mm
- Maximum reach of arms (L): 132 mm
- Max. groove depth (A): 6.2 mm
- Min. groove width (B): 1.8 mm
- Protection: IP67
- Power supply: 2x AAA (LR3) batteries
- Functions: Bargraph, GO/NO-GO judgement with green/red LED, data logger (100 values), max/min reading, data output
- Data output: Yes
Made in Japan by Mitutoyo.
