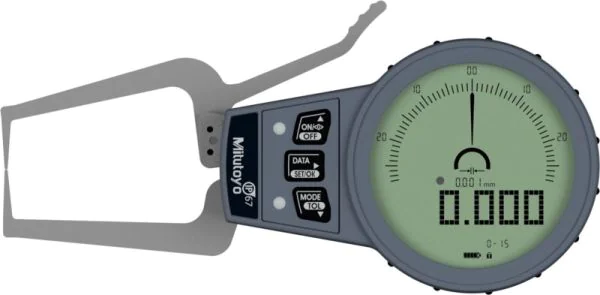

Mitutoyo 209-926 Wireless Charging Digimatic Coolant Proof Outside Caliper Gauge, Range 0-15mm, Resolution 0.001mm, Reach 45mm
Code
209-926
Categories: Default Category, Thickness Gauges & Caliper Gauges
| Manufacturer | Mitutoyo |
|---|---|
| Display | Digital |
| Range | 0-15mm |
| Resolution | 0.001mm |
| Measuring units | Inch-Metric |
| Accuracy | 0.015 mm |
| Country of Manufacture | Japan |
The Mitutoyo 209-926 is an IP67 coolant proof Digimatic caliper gauge with a wireless-charging lithium-polymer power pack, for measuring external grooves and hard-to-reach features, with bargraph display, GO/NO-GO judgement and data output for SPC.
- Measuring range: 0-15 mm
- Resolution: 0.001 / 0.002 / 0.005 / 0.01 mm switchable
- Accuracy: 0.015 mm
- Measuring force: 1.3-1.5 N
- Measuring contacts: Carbide bevel, radius 0.4 mm
- Maximum reach of arms (L): 45 mm
- Max. penetration depth, upper contact (A): 12 mm
- Max. penetration depth, lower contact (B): 12 mm
- Protection: IP67
- Power supply: Lithium-polymer power pack, wireless charging
- Functions: Bargraph, GO/NO-GO judgement with green/red LED, data logger (100 values), max/min reading, data output
- Data output: Yes
Made in Japan by Mitutoyo.
