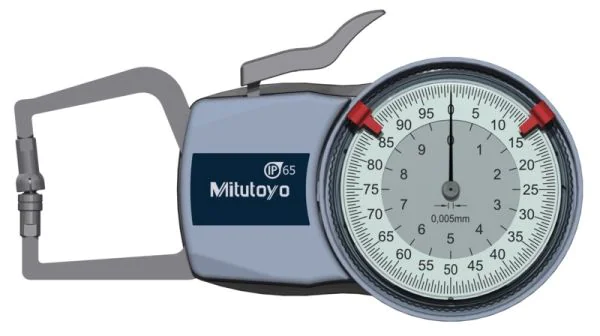

Mitutoyo 209-403 Coolant Proof Outside Dial Caliper Gauge, Range 0-10mm, Graduation 0.005mm, Reach 36mm
Code
209-403
Categories: Default Category, Thickness Gauges & Caliper Gauges
| Manufacturer | Mitutoyo |
|---|---|
| Display | Analogue |
| Range | 0-10mm |
| Resolution | 0.005 mm |
| Measuring units | Metric |
| Accuracy | 0.02 mm |
| Country of Manufacture | Japan |
The Mitutoyo 209-403 is an IP65 coolant proof dial caliper gauge with a choice of arm configurations for measuring external grooves and other hard-to-reach features, and for fast thickness measurement of flat stock some distance from an edge.
- Measuring range: 0-10 mm
- Graduation: 0.005 mm
- Accuracy: 0.02 mm
- Measuring force: 0.8-1.2 N
- Measuring contacts: Disc measuring face ø6 mm
- Maximum reach of arms (L): 36 mm
- Max. penetration depth, upper contact (A): 21.7 mm
- Protection: IP65
- Max. penetration depth, lower contact (B): 14.8 mm
Made in Japan by Mitutoyo.
