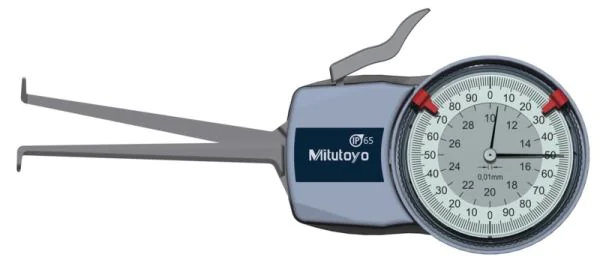

Mitutoyo 209-302 Coolant Proof Inside Dial Caliper Gauge, Range 10-30mm, Graduation 0.01mm, Reach 85mm

The Mitutoyo 209-302 is an IP65 coolant proof dial caliper gauge for measuring internal groove diameters and other hard-to-reach internal features.

• Measuring range: 10-30 mm
• Graduation: 0.01 mm
• Accuracy: 0.03 mm
• Measuring force: 1.1-1.6 N
• Measuring contacts: Carbide ball ø1 mm
• Maximum reach of arms (L): 85 mm
• Max. groove depth (A): 5.2 mm
• Min. groove width (B): 1.2 mm
• Protection: IP65

Made in Japan by Mitutoyo.
