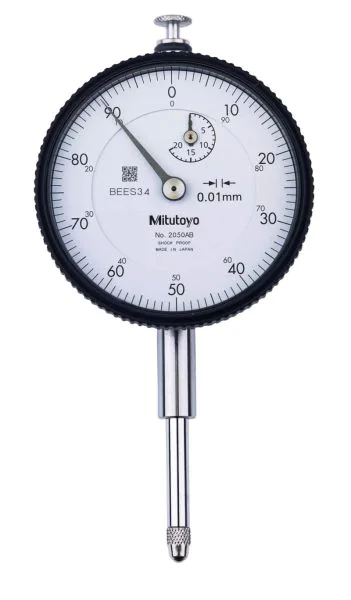

Mitutoyo 2050A Long Stroke Dial Indicator, Graduation 0.01mm, Range 20mm
Code
2050A
Categories: Default Category, Dial Indicators
| Manufacturer | Mitutoyo |
|---|---|
| Range | 0-20mm |
| Dial Revolution | 1 mm |
| Dial Reading | ±0-100 |
| Measuring units | Metric |
| Dial Face Diameter | 57mm |
| Accuracy | 20 µm |
| Stem Diameter | 8mm |
| Measuring Force | 2.0N |
| Contact Point | M2.5 thread |
| Country of Manufacture | Japan |
The Mitutoyo 2050A is a long stroke dial indicator with a 57 mm bezel, for measuring larger displacements in a single setting. Part of the Mitutoyo Series 2 range, it is built with a quench-hardened stainless steel stem and spindle for heavy-duty use, and a sealed bezel and crystal to keep out water and oil.
- Measuring range: 20 mm
- Range per revolution: 1 mm
- Graduation: 0.01mm
- Dial reading: ±0-100
- Maximum permissible error (overall): 20 μm
- Hysteresis: 5 μm
- Repeatability: 4 μm
- Measuring force: 2.0 N or less
- Bezel diameter: 57mm
- Stem diameter: 8mm
- Contact point: carbide, M2.5 x 0.45 thread
Accuracy is inspected with the indicator vertical, contact point downward. Optional bezel clamps, limit hands, lifting levers and alternative contact points are available.
Suitable for comparative measurement, run-out and flatness checks, height comparison on a stand and use in gauging fixtures.
