Mitutoyo 192-672-10 Digimatic Double Column Height Gauge, Range 0-600mm, Resolution 0.01/0.005mm, Multifunctional Type
Code
192-672-10
Categories: Default Category, Digital Height Gauges
| Manufacturer | Mitutoyo |
|---|---|
| Display | Digital |
| Range | 0-600mm |
| Measuring units | Inch-Metric |
| Resolution | 0.01 mm/0.0005" |
| Accuracy | ±0.04 mm |
| Type | Double Column |
| Repeatability | 10 µm |
| Data Output | Yes |
| Air Cushion | No |
| Power Supply | Battery |
| Country of Manufacture | Japan |

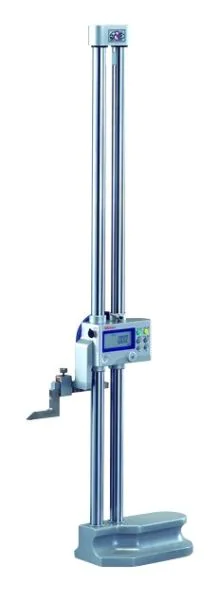

The Mitutoyo 192-672-10 is a double column Digimatic height gauge for high accuracy, with an ergonomic base, inclined handle, coarse and fine height adjustment and an 11 mm high-contrast display.
- Measuring range: 0-600 mm (0-24")
- Resolution: 0.01 / 0.005 mm (.0005 / .0002") switchable
- Maximum permissible error: ±0.04 mm (±.0015")
- Type: Multifunctional
- Data output: Yes
- Overall height: 802 mm
- Mass: 8.3 kg
- Standard accessories: Scriber 905201 (multifunctional type), scriber clamp 901385
Made in Japan by Mitutoyo. Suitable for inspection, layout and quality control on the surface plate.
