Mitutoyo 1781A Compact Dial Indicator, Graduation .001", Range .125"
Code
1781A
Categories: Default Category, Dial Indicators
| Manufacturer | Mitutoyo |
|---|---|
| Range | 0-0.125" |
| Dial Revolution | 0.05" |
| Dial Reading | 0-25-0 |
| Measuring units | Inch |
| Dial Face Diameter | 41mm |
| Accuracy | 0.001" |
| Stem Diameter | 3/8" |
| Measuring Force | 1.4N |
| Contact Point | No. 4-48 UNF thread |
| Country of Manufacture | Japan |

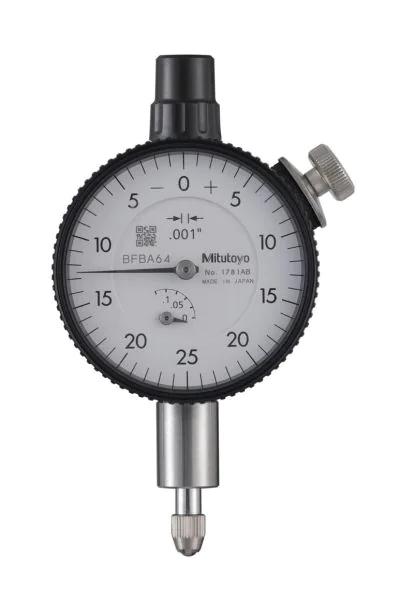

The Mitutoyo 1781A is a compact dial indicator, ideal where space is limited such as in gauging fixtures and jigs. Part of the Mitutoyo Series 1 range, it is built with a quench-hardened stainless steel stem and spindle for heavy-duty use, and a sealed bezel and crystal to keep out water and oil.
- Measuring range: .125"
- Range per revolution: .05"
- Graduation: .001"
- Dial reading: 0-25-0
- Maximum permissible error (overall): ±.001" / ±.001" / —
- Hysteresis: .0002"
- Repeatability: ±.0002"
- Measuring force: 1.4 N or less
- Bezel diameter: 41mm
- Stem diameter: 3/8"
- Contact point: carbide, No. 4-48 UNF thread
Accuracy is inspected with the indicator vertical, contact point downward. Optional bezel clamps, limit hands, lifting levers and alternative contact points are available.
Suitable for comparative measurement, run-out and flatness checks, height comparison on a stand and use in gauging fixtures.
