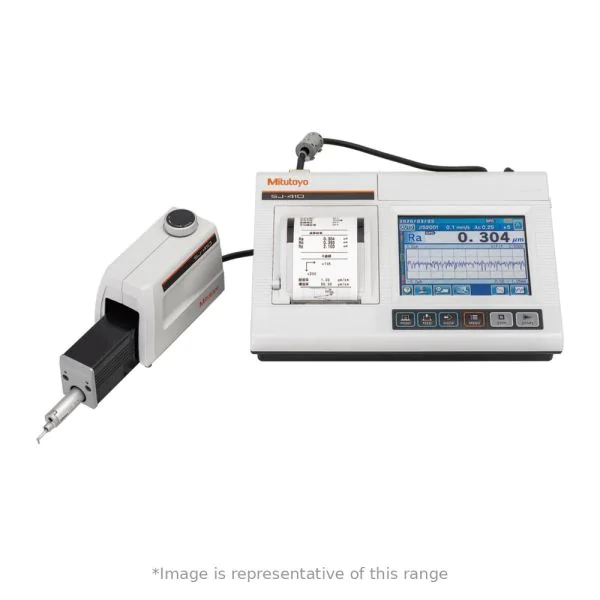

Mitutoyo 178-581-32E Surftest SJ-411 Portable Surface Roughness Tester, 25mm Traverse, Stylus 5µm/90°, 4mN
Code
178-581-32E
Categories: Default Category, Surface Finish
| Manufacturer | Mitutoyo |
|---|---|
| Measuring units | Inch-Metric |
| Range | 800µm |
| Stylus Type | Diamond 5µm/90° |
| Filter | Gaussian / 2CR / PC75 |
| Cut-off Length | 0.08/0.25/0.8/2.5/8mm |
| Measuring Speed | 0.05/0.1/0.2/0.5/1mm/s |
| Power Supply | Rechargeable Battery |
| Country of Manufacture | Japan |
The Mitutoyo 178-581-32E is a portable surface roughness tester that can measure both skidded and skidless, with a wide-range, high-resolution detector for high-accuracy measurement. The skidless detector and curved-surface compensation evaluate cylinder surfaces efficiently, and ultra-fine steps, straightness and waviness can also be measured. It has a 5.7-inch colour touch-panel LCD, a built-in printer and 46 roughness parameters to the latest ISO, DIN, ANSI and JIS standards.
- Measuring range (X axis): 25 mm
- Detector range / resolution: 800 µm / 0.0125 µm, 80 µm / 0.00125 µm, 8 µm / 0.000125 µm (up to 2,400 µm with an optional stylus)
- Measuring method: skidless or skidded
- Stylus tip: 90° / 5 µm radius, measuring force 4 mN
- Measuring speed: 0.05, 0.1, 0.2, 0.5, 1.0 mm/s (returning 0.5, 1, 2, 5 mm/s)
- Traverse straightness: 0.3 µm / 25 mm
- Standards: JIS'82, JIS'94, JIS'01, ISO'97, ANSI, VDA
- Digital filters: 2CR, PC75, Gaussian
- Cutoff length: λc 0.08, 0.25, 0.8, 2.5, 8 mm
- Power: AC adapter or rechargeable battery, up to 1,000 measurements per charge (without printing)
- R-surface and tilt compensation
- Simple contour analysis: step, level change, area and coordinate difference
- Built-in thermal printer
- Statistical processing and GO/±NG judgement
- Password protection for settings
Made in Japan by Mitutoyo.
