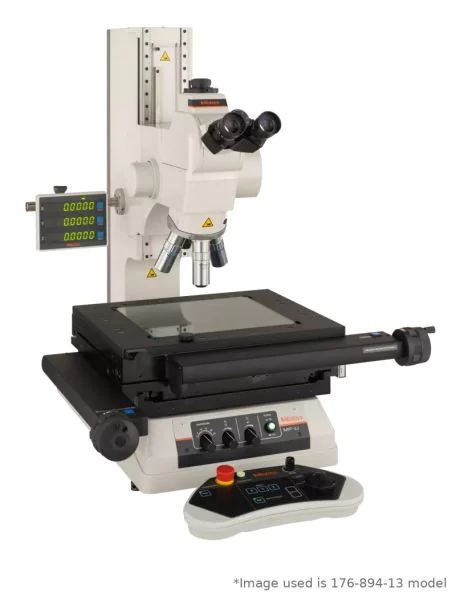

Mitutoyo 176-990-13 MF-UD4020D High-Power Measuring Microscope, XY Stage Travel 400 x 200mm, With Z-Axis Scale, Brightfield/Darkfield

The Mitutoyo MF-UD4020D (176-990-13) is a high-power multi-function measuring microscope that combines metallurgical observation with high-accuracy measurement, for brightfield/darkfield observation up to 4000X. It uses the proven high-NA, long working distance FS objectives (M/BD Plan Apo, 1X to 200X, optional) on a Siedentoph binocular tube with TV mount, and gives a clear, flare-free erect image over a wide field of view. Measuring accuracy is the highest in its class (JIS B7153). The turret, objectives and illumination unit are optional: an LED (176-450) or halogen (176-452) illumination unit must be ordered with the microscope.

• Z-axis: with Z-axis scale
• Measuring accuracy (20 °C): X/Y axes ±(2.2+2L/100) µm unloaded, JIS B7153, L = measured length (mm)
• Measurement method: linear encoder
• Focusing: manual (coarse 10 mm/rev, fine 0.1 mm/rev)
• Optical tube: Siedentoph binocular, 0-30° inclination, 1X tube lens, TV mount (50/50)
• Objectives: M/BD Plan Apo 1X to 200X (optional)
• Quick-release mechanism: X and Y axes
• Transmitted illumination: telecentric with adjustable aperture diaphragm, halogen (12 V 50 W) or white LED
• Surface illumination: Koehler with adjustable aperture diaphragm, halogen (12 V 50 W) or white LED
• Display unit: 3 axes, zero-setting, direction switching, RS-232C/USB data output
• Power supply: 240 V AC ±10%, 50/60 Hz

Made in Japan by Mitutoyo.
