Mitutoyo 139-174 Tubular Inside Micrometer with Extension, 100-900mm
Code
139-174
Categories: Default Category, Inside Micrometers
| Manufacturer | Mitutoyo |
|---|---|
| Display | Analogue |
| Measuring units | Metric |
| Accuracy | 3 µm±(3+number of rods+max. measurement length/50) µm |
| Type | Tubular Inside Micrometer |
| Range | 100-900mm |
| Measuring Span | 25mm |
| Graduation | 0.01mm |
| Measuring Face | Carbide tipped |
| Included in Set | 5 (25, 50, 100, 200, 400 mm) |
| Spindle | Thimble and sleeve satin chrome finish, ø18 mm ø13 mm (139-203, 139-204)Spindle pitch 0,5 mm |
| Country of Manufacture | Japan |

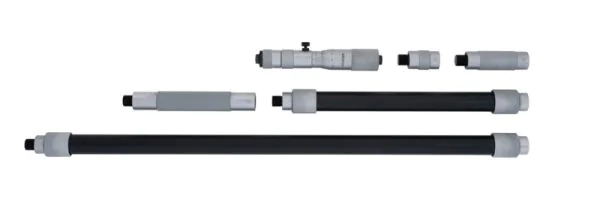

A Mitutoyo inside micrometer covering a range of measurement by using a set of interchangeable extension tubes that can be used singly or in combination. The micrometer head is satin-chrome finished.
Measuring span: 25 mm.
Extension rods included: 5 (25, 50, 100, 200, 400 mm).
Measuring face: Carbide.
Spindle feed error: 3 µm.
Limit of error: ±(3+number of rods+max. measurement length/50) µm.
Delivered: Including box, spanner, extension rods (5 pcs.), micrometer head 139-001.
