Mitutoyo 139-001 Main Unit for Tubular Inside Micrometer, Carbide Tipped 100-125mm
Code
139-001
Categories: Default Category, Inside Micrometers
| Manufacturer | Mitutoyo |
|---|---|
| Display | Analogue |
| Measuring units | Metric |
| Accuracy | 3 µm |
| Type | Tubular Inside Micrometer |
| Range | 100-125mm |
| Measuring Span | 25mm 10mm(139-203). 25mm (139-204) |
| Graduation | 0.01mm |
| Measuring Face | Carbide tipped |
| Included in Set | 25 mm, 50 mm, 100 mm, 200 mm |
| Spindle | Thimble and sleeve satin chrome finish, ø18 mm ø13 mm (139-203, 139-204)Spindle pitch 0,5 mm |
| Country of Manufacture | Japan |

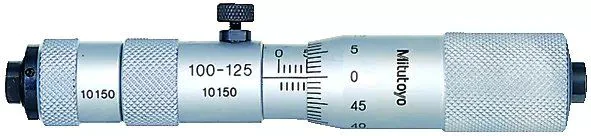

A Mitutoyo inside micrometer head designed for standalone use or in conjunction with optional interchangeable extension tubes. Satin-chrome finished.
Measuring span: 25 mm
10 mm(139-203), 25 mm (139-204).
Extension rods included: 25 mm, 50 mm, 100 mm, 200 mm.
Measuring face: Carbide.
Spindle feed error: 3 µm.
Delivered: Including box, key, micrometer head.
