Mitutoyo 137-210 Tubular Inside Micrometer Carbide Tipped, 50-1500mm

Code

137-210

£817.00

In stock

Need more information? contact us.

Manufacturer	Mitutoyo
Display	Analogue
Measuring units	Metric
Accuracy	3 µm±(3+number of rods+max. measurement length/50) µm
Type	Tubular Inside Micrometer
Range	50-1500mm
Measuring Span	13mm
Graduation	0.01mm
Measuring Face	Carbide tipped
Included in Set	10 (13, 25, 50 (2 pcs.) 100, 200 (3 pcs.), 300 mm (2 pcs.))
Spindle	Thimble and sleeve satin chrome finish, ø15 mmSpindle pitch 0,5 mm
Country of Manufacture	Japan

This is an extension rod type inside micrometer that offers you the following benefits.

Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
Carbide measuring faces are available.

Measuring span: 13 mm.

Extension rods included: 10 (13, 25, 50 (2 pcs.) 100, 200 (3 pcs.), 300 mm (2 pcs.)).

Measuring face: Carbide.

Spindle feed error: 3 µm.

Limit of error: ±(3+number of rods+max. measurement length/50) µm.

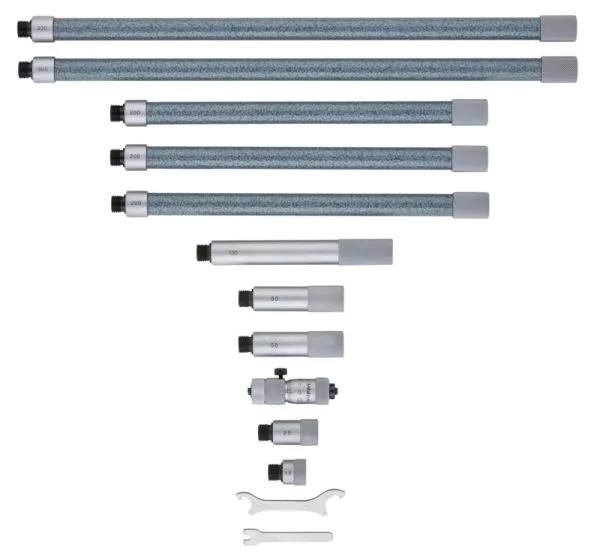

Delivered: Including box, spanner, extension rods (10 pcs.), micrometer head 137-013.
