Mitutoyo 137-208 Tubular Inside Micrometer Carbide Tipped, 50-500mm
Code
137-208
Categories: Default Category, Inside Micrometers
| Manufacturer | Mitutoyo |
|---|---|
| Display | Analogue |
| Measuring units | Metric |
| Accuracy | 3 µm±(3+number of rods+max. measurement length/50) µm |
| Type | Tubular Inside Micrometer |
| Range | 50-500mm |
| Measuring Span | 13mm |
| Graduation | 0.01mm |
| Measuring Face | Carbide tipped |
| Included in Set | 6 (13, 25, 50 (2 pcs.), 100, 200 mm) |
| Spindle | Thimble and sleeve satin chrome finish, ø15 mmSpindle pitch 0,5 mm |
| Country of Manufacture | Japan |
This is an extension rod type inside micrometer that offers you the following benefits.
- Interchangeable extensions with cylindrical gage rods are spring-mounted in protective sleeves so you can extend the measuring range.
- Carbide measuring faces are available.
Measuring span: 13 mm.
Extension rods included: 6 (13, 25, 50 (2 pcs.), 100, 200 mm).
Measuring face: Carbide.
Spindle feed error: 3 µm.
Limit of error: ±(3+number of rods+max. measurement length/50) µm.

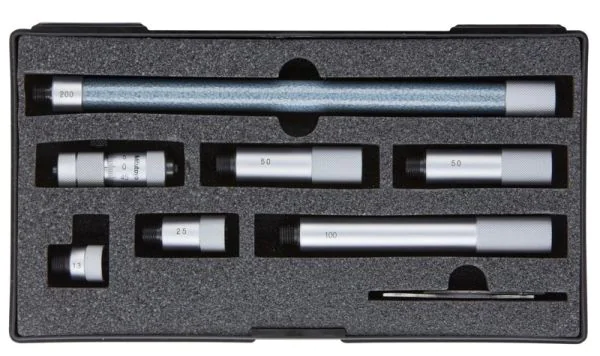

Delivered: Including box, spanner, extension rods (6 pcs.), micrometer head 137-013.
