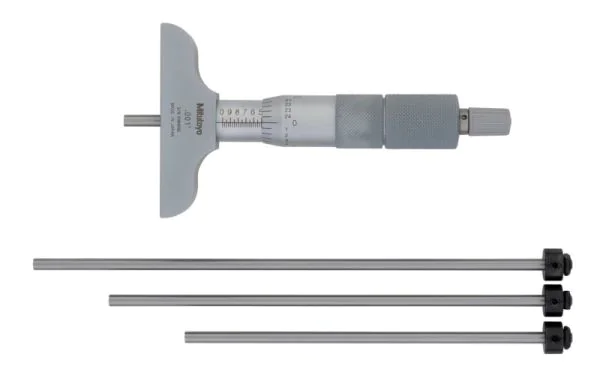

Mitutoyo 129-127 Depth Micrometer, Interchangeable Rods, Range 0-4", Graduation 0.001", 2.5" Base
Code
129-127
Categories: Depth Micrometers, Depth Measuring Gauges
| Display | Analog |
|---|---|
| Measuring units | Inch |
| Type | Standard |
| Accuracy | (4+ L/50) µm L=max. measuring length (mm) |
| Material | Hardened tool steel |
| Manufacturer | Mitutoyo |
| Standard | Manufacture's |
| Weight | 2.000000 |
This Depth Micrometer, Interchangeable Rods offers you the following benefits:
- ø4mm measuring rod
- Ratchet stop provides a constant measuring force
- Measuring rod lock for secure transfer measurement
- Interchangeable rods extend the measuring range with a single instrument
- Hardened tool steel base, ground and micro-lapped for flatness
- Supplied in a fitted storage case
Mitutoyo Depth Micrometer, Interchangeable Rods (129-127) is an industry-standard depth micrometer with interchangeable rods designed for depth measurement across a wide range using interchangeable measuring rods.
- Measuring range: 0-4"
- Graduation: 0.001"
- Parallelism (base/rod): (4+ L/50) µm L=max. measuring length (mm)
- Spindle pitch: 0.5mm
- Measuring force: 5-10 N
Features include ratchet stop for constant measuring force, interchangeable rods for extended range, and hardened tool-steel base.
Suitable for toolroom inspection, machine shops and depth measurement across multiple ranges.
