Mitutoyo 129-116 Interchangeable Rod Depth Micrometer, Range 0-150mm, Graduation 0.01mm, Base 101.6x16mm
Code
129-116
Categories: Depth Micrometers, Depth Measuring Gauges, Default Category
| Display | Mechanical |
|---|---|
| Measuring units | Metric |
| Type | Standard |
| Accuracy | ±3 µm |
| Range | 0-150mm |
| Base Length | 101.6mm |
| Material | Hardened tool steel |
| Graduation | 0.01mm |
| Manufacturer | Mitutoyo |
| Standard | Manufacturer's |
| Country of Manufacture | Japan |

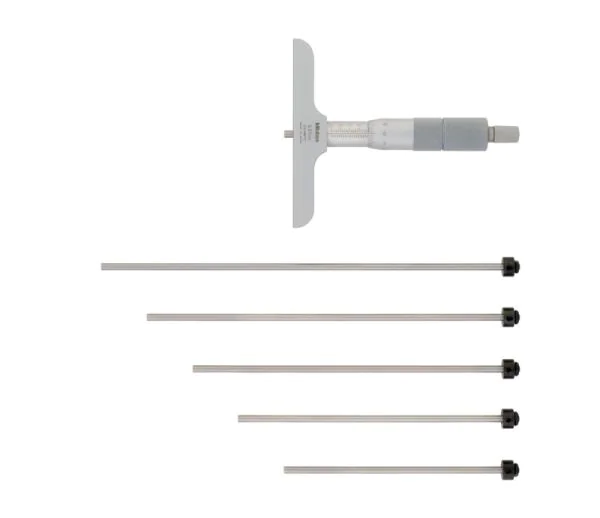

The Mitutoyo 129-116 is a depth micrometer with interchangeable ø4 mm rods for a wide measuring range, with a rod lock and ratchet stop for constant measuring force.
- Measuring range: 0-150 mm
- Graduation: 0.01 mm
- Accuracy: ±3 µm (spindle feed error)
- Base: 101.6 x 16 mm
- Base flatness: 2.0 µm
- Parallelism: 7 µm
- Zero point error of rods: 4 µm
- Number of rods: 6
- Rod diameter: ø4 mm
Made in Japan by Mitutoyo. Suitable for inspection, quality control and workshop use.
