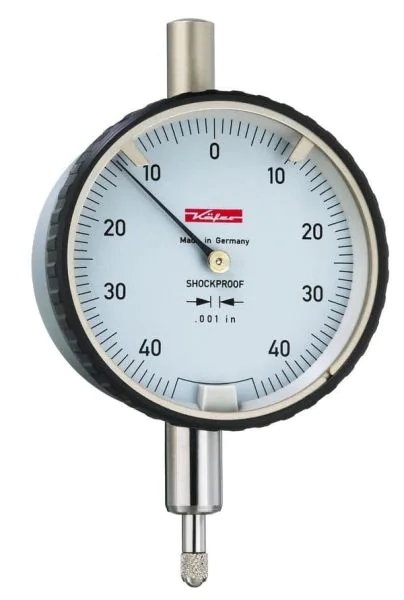

Käfer Z 2 SI Error Free Shockproof Inch Dial Gauge, Graduation 0.001", Range 0.080"
| Manufacturer | Käfer |
|---|---|
| Range | 0-0.080" |
| Dial Reading | 40-0-40 |
| Measuring units | Inch |
| Dial Face Diameter | 58mm |
| Accuracy | As per DIN 878 |
| Stem Diameter | 3/8" |
| Contact Point | No. 4-48 UNF thread |
| Country of Manufacture | Germany |
Käfer Z 2 SI is a precision Error Free shockproof inch dial gauge made in Germany, built to American Standard ANSI B89.1.10M dimensions with a 3/8" stem, for accurate comparative measurement. As an Error Free model, the whole range is covered in less than one turn of the pointer, so a reading can never be misread by a full revolution. It has a shockproof movement: a sprung gear rack sleeve along the spindle stops knocks to the contact point reaching the movement.
- Measuring range: 0-0.080"
- Graduation: 0.001"
- Dial reading: 40-0-40
- Bezel diameter: 58 mm
- Stem diameter: 3/8"
- Contact point thread: 4-48 UNF
Features include a bezel and outer dial that turn through a full 360° to set zero in any position, adjustable tolerance markers, a stainless steel spindle and stem with a lapped spindle, and an exchangeable contact point with 4-48 UNF thread. Supplied with a flat back; a lug back is available on request.
Suitable for comparative measurement, inspection and quality control.
