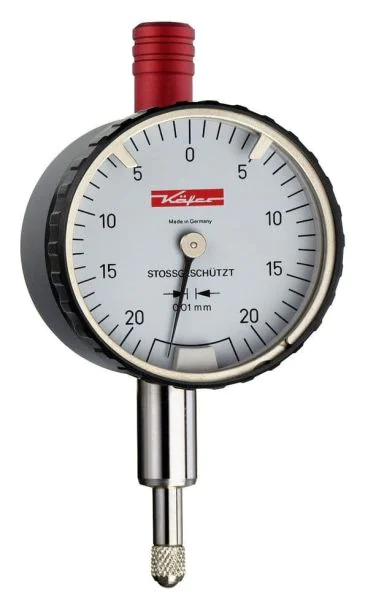

Käfer SI-45 Error Free Dial Gauge, Graduation 0.01mm, Range 0.4mm
Code
SI-45
Categories: Default Category, Dial Indicators
| Manufacturer | Käfer |
|---|---|
| Range | 0-0.4mm |
| Dial Reading | 20-0-20 |
| Measuring units | Metric |
| Dial Face Diameter | 40mm |
| Accuracy | As per DIN 878 |
| Stem Diameter | 8mm |
| Contact Point | M2.5 thread |
| Country of Manufacture | Germany |
Käfer SI-45 is a precision Error Free dial gauge made in Germany, with dimensions to DIN EN ISO 463, for accurate comparative measurement. As an Error Free model, the whole measuring range is covered in less than one turn of the pointer, so a reading can never be misread by a full revolution.
- Measuring range: 0-0.4 mm
- Graduation: 0.01 mm
- Bezel diameter: 40 mm
- Stem diameter: 8 mm h6
Features include a bezel and outer dial that turn through a full 360° to set zero in any position, adjustable tolerance markers, a robust metal case with serial number, a lapped spindle carefully matched to its stem, and a standard contact point with M2.5 thread that can be exchanged for special contact points.
Suitable for comparative measurement, inspection and quality control.
