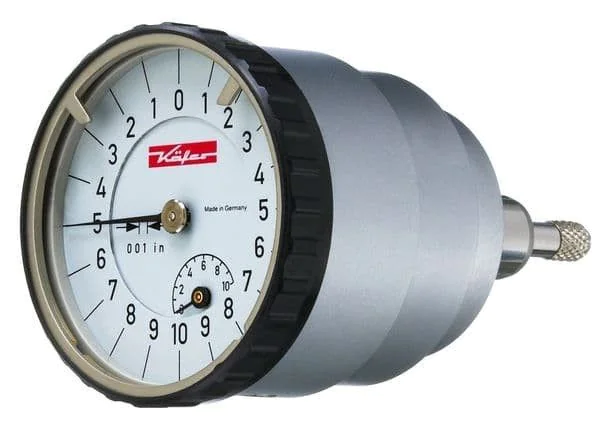

Käfer KZ 4/5 Rb Back Plunger Inch Dial Gauge, Graduation 0.001", Range 0.200"
| Manufacturer | Käfer |
|---|---|
| Range | 0-0.200" |
| Measuring units | Inch |
| Dial Face Diameter | 40mm |
| Accuracy | As per DIN 878 |
| Stem Diameter | 3/8" |
| Contact Point | No. 4-48 UNF thread |
| Country of Manufacture | Germany |
Käfer KZ 4/5 Rb is a precision back plunger inch dial gauge made in Germany, built to American Standard ANSI B89.1.10M dimensions with a 3/8" stem, for accurate comparative measurement. The measuring plunger is on the back of the gauge, at right angles to the dial, for use where a standard dial gauge will not fit. It has a balanced dial, numbered either side of zero, for reading plus and minus deviations.
- Measuring range: 0-0.200"
- Graduation: 0.001"
- Bezel diameter: 40 mm
- Stem diameter: 3/8"
- Contact point thread: 4-48 UNF
Features include a bezel and outer dial that turn through a full 360° to set zero in any position, adjustable tolerance markers, a stainless steel spindle and stem with a lapped spindle, and an exchangeable contact point with 4-48 UNF thread. Supplied with a flat back; a lug back is available on request.
Suitable for comparative measurement, inspection and quality control.
