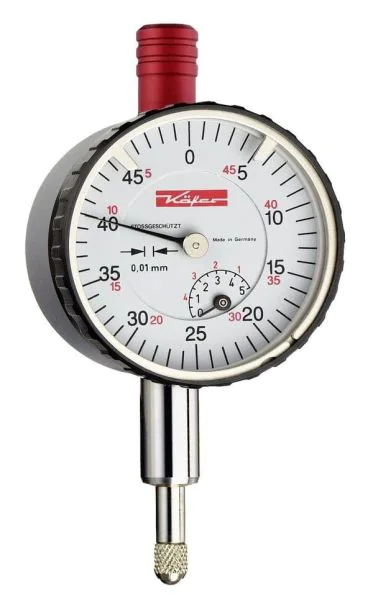

Käfer KM 4/5 S Shockproof Dial Gauge, Graduation 0.01mm, Range 5mm
Code
KM 4/5 S
Categories: Default Category, Dial Indicators
| Manufacturer | Käfer |
|---|---|
| Range | 0-5mm |
| Dial Revolution | 0.5 mm |
| Measuring units | Metric |
| Dial Face Diameter | 40mm |
| Accuracy | As per DIN 878 |
| Stem Diameter | 8mm |
| Contact Point | M2.5 thread |
| Country of Manufacture | Germany |
Käfer KM 4/5 S is a precision shockproof dial gauge made in Germany, with dimensions to DIN EN ISO 463, for accurate comparative measurement. It has a shockproof movement that protects the mechanism against knocks.
- Measuring range: 0-5 mm
- Graduation: 0.01 mm
- Range per revolution: 0.5 mm
- Bezel diameter: 40 mm
- Stem diameter: 8 mm h6
Features include a bezel and outer dial that turn through a full 360° to set zero in any position, adjustable tolerance markers, a robust metal case with serial number, a lapped spindle carefully matched to its stem, and a standard contact point with M2.5 thread that can be exchanged for special contact points.
Suitable for comparative measurement, inspection and quality control.
