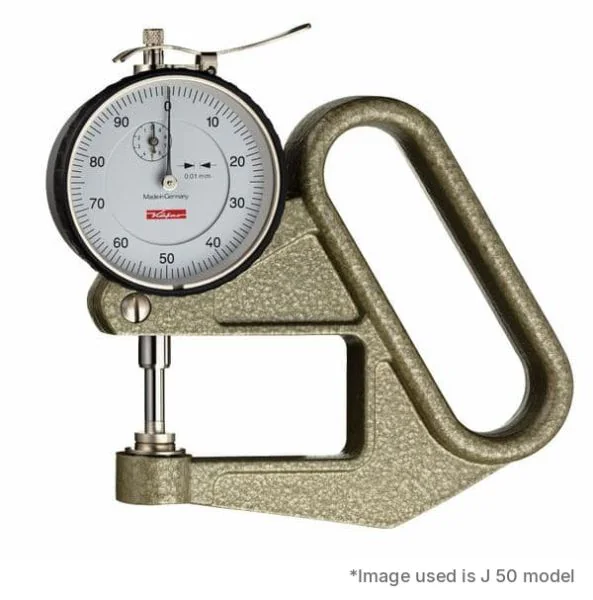

Käfer K 50/3 Dial Thickness Gauge with Lifting Device, Reading 0.1mm, Range 30mm, Jaw Depth 50mm
Code
K 50/3 with lifting device
Categories: Default Category, Thickness Gauges & Caliper Gauges
| Manufacturer | Käfer |
|---|---|
| Display | Analogue |
| Depth of Jaw | 50 mm |
| Dial Face Diameter | 58mm |
| Range | 0-30mm |
| Dial Revolution | 10 mm |
| Resolution | 0.1 mm |
| Measuring units | Metric |
| Accuracy | As per Käfer works standard |
| Country of Manufacture | Germany |
Käfer K 50/3 is a hand-held dial thickness gauge with a large frame depth and a lifting device. At rest the contact points are closed, so the contact pressure is applied independently of the user. Made in Germany.
- Reading: 0.1 mm
- Measuring range: 30 mm
- Range per revolution: 10 mm
- Depth of jaw: 50 mm
- Bezel diameter: 58 mm
- Accuracy: to Käfer works standard
- Standard contact point: form c (Ø10 mm flat)
- Optional contact points: forms a, b, d or e at the same price
With the optional Stand 2.1670, this hand-held gauge converts quickly into a table instrument.
Suitable for measuring the thickness of materials such as leather, paperboard, paper, felt, rubber, glass, sheet metal, films, plywood and plastics.
