Käfer K 400 Dial Thickness Gauge, Reading 0.1mm, Range 30mm, Jaw Depth 400mm
Code
K 400
Categories: Default Category, Thickness Gauges & Caliper Gauges
| Manufacturer | Käfer |
|---|---|
| Display | Analogue |
| Depth of Jaw | 400 mm |
| Dial Face Diameter | 58mm |
| Range | 0-30mm |
| Dial Revolution | 10 mm |
| Resolution | 0.1 mm |
| Measuring Force | 1.5N |
| Measuring units | Metric |
| Accuracy | As per Käfer works standard |
| Country of Manufacture | Germany |

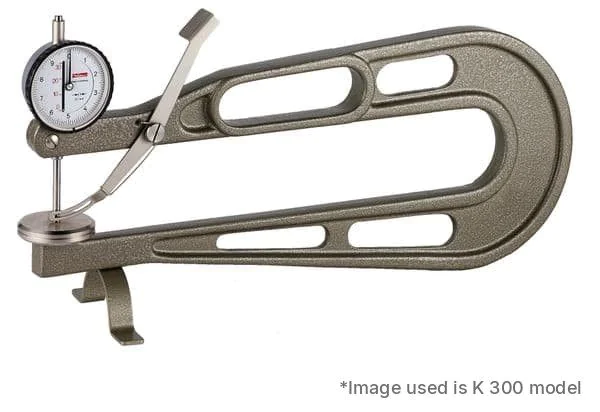

Käfer K 400 is a large-frame dial thickness gauge with a lifting lever, so the contact force is independent of the user. The aluminium body keeps it light and easy to handle, and a mounting device allows it to be used as a table unit. Made in Germany.
- Reading: 0.1 mm
- Measuring range: 30 mm
- Range per revolution: 10 mm
- Depth of jaw: 400 mm
- Bezel diameter: 58 mm
- Accuracy: to Käfer works standard
- Contact force: 1.5 N
- Standard contact point: form c (Ø10 mm flat)
- Optional contact points: forms a, b, d or e at the same price
Suitable for measuring the thickness of materials such as leather, paperboard, paper, felt, rubber, glass, sheet metal, films, plywood and plastics.
