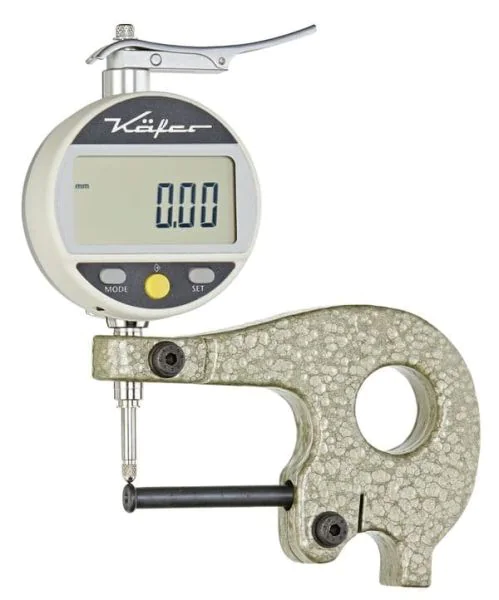

Käfer JD 50 W Digital Tube Wall Thickness Gauge, Resolution 0.01mm, Range 12.5mm, Jaw Depth 50mm

Käfer JD 50 W is a tube wall thickness gauge with digital reading. Its 6 mm contact points have a collar with a 1 mm radius, so tubes that still have a burr from parting can be checked; a ground 6 mm contact pin is included. Made in Germany.

• Resolution: 0.01 mm / 0.0005"
• Measuring range: 12.5 mm
• Depth of jaw: 50 mm
• Accuracy: maximum error 20 µm
• Standard contact point: 6 mm Ø pin with 1 mm radius collar
• Output: RS 232 or USB
• Power supply: 3 V lithium battery (approx. 8000 h battery life)

Functions include zero setting, mm/inch selection, data transmission, selection of measuring direction, Memory/Hold, preset value recall and personalising the functions. The data cable is not included and must be ordered separately.

Suitable for measuring the thickness of materials such as leather, paperboard, paper, felt, rubber, glass, sheet metal, films, plywood and plastics.
