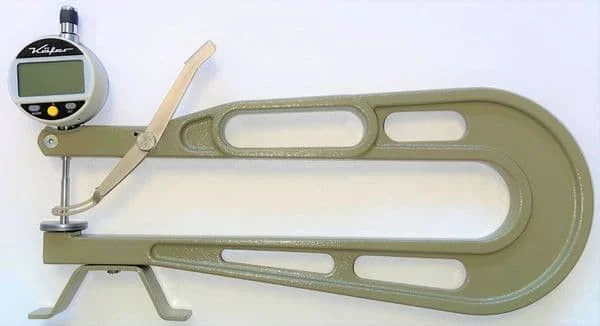

Käfer JD 300 Digital Thickness Gauge with Lifting Device, Resolution 0.01mm, Range 12.5mm, Jaw Depth 300mm
Code
JD 300
Categories: Default Category, Thickness Gauges & Caliper Gauges
| Manufacturer | Käfer |
|---|---|
| Display | Digital |
| Depth of Jaw | 300 mm |
| Range | 0-12.5mm |
| Resolution | 0.01 mm/0.0005" |
| Measuring units | Inch-Metric |
| Country of Manufacture | Germany |
Käfer JD 300 is a digital thickness gauge with a lifting device and a large, easy-to-read display. The aluminium body keeps it light and easy to handle. Made in Germany.
- Resolution: 0.01 mm / 0.0005"
- Measuring range: 12.5 mm
- Depth of jaw: 300 mm
- Standard contact point: form c (Ø10 mm flat)
- Optional contact points: forms a, b, d or e at the same price
- Output: RS 232 or USB
- Power supply: 3 V lithium battery (approx. 8000 h battery life)
Functions include zero setting, mm/inch selection, data transmission, selection of measuring direction, Memory/Hold, preset value recall and personalising the functions. The data cable is not included and must be ordered separately.
Suitable for measuring the thickness of materials such as leather, paperboard, paper, felt, rubber, glass, sheet metal, films, plywood and plastics.
