Käfer JD 200/25 Digital Thickness Gauge with Lifting Device, Resolution 0.01mm, Range 25mm, Jaw Depth 200mm
Code
JD 200/25
Categories: Default Category, Thickness Gauges & Caliper Gauges
| Manufacturer | Käfer |
|---|---|
| Display | Digital |
| Depth of Jaw | 200 mm |
| Range | 0-25mm |
| Resolution | 0.01 mm/0.0005" |
| Measuring units | Inch-Metric |
| Country of Manufacture | Germany |

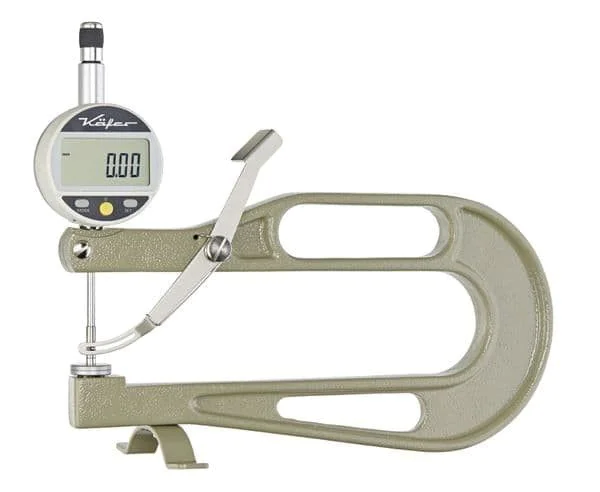

Käfer JD 200/25 is a digital thickness gauge with a large frame height, a 25 mm digital indicator and a lifting device, combining easy handling with a large measuring range. Made in Germany.
- Resolution: 0.01 mm / 0.0005"
- Measuring range: 25 mm
- Depth of jaw: 200 mm
- Standard contact point: form c (Ø10 mm flat)
- Optional contact points: forms a, b, d or e at the same price
- Output: RS 232 or USB
- Power supply: 3 V lithium battery (approx. 8000 h battery life)
Functions include zero setting, mm/inch selection, data transmission, selection of measuring direction, Memory/Hold, preset value recall and personalising the functions. The data cable is not included and must be ordered separately.
Suitable for measuring the thickness of materials such as leather, paperboard, paper, felt, rubber, glass, sheet metal, films, plywood and plastics.
