Käfer JD 100 TOP Digital Thickness Gauge with Lifting Device, Resolution 0.01mm, Range 12.5mm, Jaw Depth 100mm
Code
JD 100 TOP
Categories: Default Category, Thickness Gauges & Caliper Gauges
| Manufacturer | Käfer |
|---|---|
| Display | Digital |
| Depth of Jaw | 100 mm |
| Range | 0-12.5mm |
| Resolution | 0.01 mm/0.0005" |
| Measuring Force | 0.6N ±20% |
| Measuring units | Inch-Metric |
| Accuracy | 0.02 mm |
| Country of Manufacture | Germany |

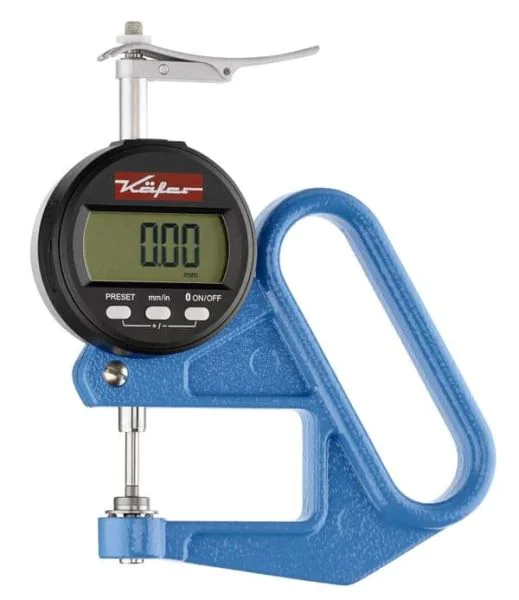

Käfer JD 100 TOP is a digital thickness gauge with a lifting device and a large, easy-to-read display. The aluminium body keeps it light and easy to handle. Made in Germany.
- Resolution: 0.01 mm / 0.0005"
- Measuring range: 12.5 mm
- Depth of jaw: 100 mm
- Accuracy: maximum error 20 µm
- Contact force: 0.6 N ± 20%
- Standard contact point: form c (Ø10 mm flat)
- Optional contact points: forms a, b, d or e at the same price
- Output: Opto RS 232, USB or Digimatic
- Power supply: 3 V lithium battery (approx. 3 years battery life)
Functions include zero setting, mm/inch selection, data transmission, selection of measuring direction, Memory/Hold, preset value recall and personalising the functions. The data cable is not included and must be ordered separately.
With the optional Stand 2.1670, this hand-held gauge converts quickly into a table instrument.
Suitable for measuring the thickness of materials such as leather, paperboard, paper, felt, rubber, glass, sheet metal, films, plywood and plastics.
