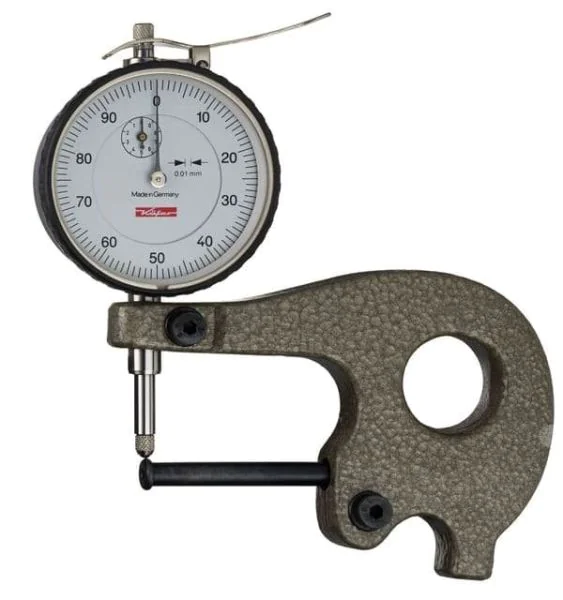

Käfer J 50 W Tube Wall Thickness Gauge, Reading 0.01mm, Range 10mm, Jaw Depth 50mm
Code
J 50 W
Categories: Default Category, Thickness Gauges & Caliper Gauges
| Manufacturer | Käfer |
|---|---|
| Display | Analogue |
| Depth of Jaw | 50 mm |
| Dial Face Diameter | 58mm |
| Range | 0-10mm |
| Dial Revolution | 1 mm |
| Resolution | 0.01mm |
| Measuring units | Metric |
| Accuracy | As per DIN 878 |
| Country of Manufacture | Germany |
Käfer J 50 W is a tube wall thickness gauge with analogue reading. Its 6 mm contact points have a collar with a 1 mm radius, so tubes that still have a burr from parting can be checked; a ground 6 mm contact pin is included. Made in Germany.
- Reading: 0.01 mm
- Measuring range: 10 mm
- Range per revolution: 1 mm
- Depth of jaw: 50 mm
- Bezel diameter: 58 mm
- Accuracy: to DIN 878
- Standard contact point: 6 mm Ø pin with 1 mm radius collar
Suitable for measuring the thickness of materials such as leather, paperboard, paper, felt, rubber, glass, sheet metal, films, plywood and plastics.
