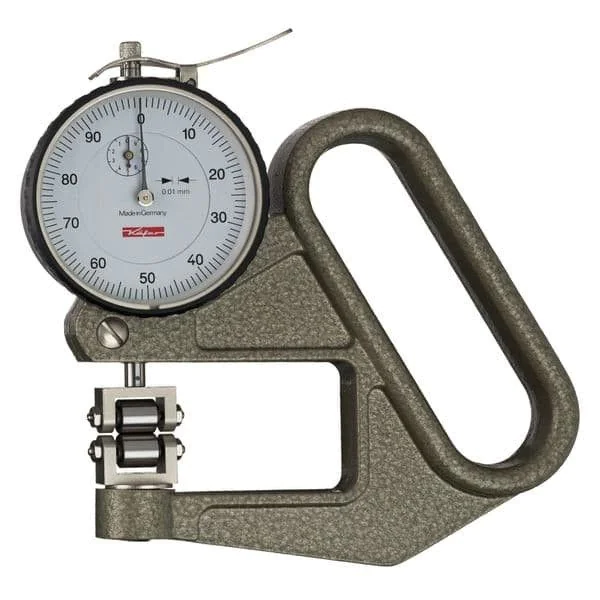

Käfer J 50 R Dial Thickness Gauge, Roller Contacts with Side Discs, Reading 0.01mm, Range 5mm, Jaw Depth 50mm
Code
J 50 R
Categories: Default Category, Thickness Gauges & Caliper Gauges
| Manufacturer | Käfer |
|---|---|
| Display | Analogue |
| Depth of Jaw | 50 mm |
| Dial Face Diameter | 58mm |
| Range | 0-5mm |
| Dial Revolution | 1 mm |
| Resolution | 0.01mm |
| Measuring units | Metric |
| Country of Manufacture | Germany |
Käfer J 50 R is a dial thickness gauge with roller contact points and side discs on the lower roller to guide the thread, suited to measuring wires and threads, especially in continuous motion. Made in Germany.
- Reading: 0.01 mm
- Measuring range: 5 mm
- Range per revolution: 1 mm
- Depth of jaw: 50 mm
- Bezel diameter: 58 mm
- Standard contact point: rollers
- Rollers: 8.7 mm wide, Ø 8.4 mm
Suitable for measuring the thickness of materials such as leather, paperboard, paper, felt, rubber, glass, sheet metal, films, plywood and plastics.
