Käfer J 200 Dial Thickness Gauge, Reading 0.01mm, Range 10mm, Jaw Depth 200mm
Code
J 200
Categories: Default Category, Thickness Gauges & Caliper Gauges
| Manufacturer | Käfer |
|---|---|
| Display | Analogue |
| Depth of Jaw | 200 mm |
| Dial Face Diameter | 58mm |
| Range | 0-10mm |
| Dial Revolution | 1 mm |
| Resolution | 0.01mm |
| Measuring Force | 2.0N ±20% |
| Measuring units | Metric |
| Accuracy | As per DIN 878 |
| Country of Manufacture | Germany |

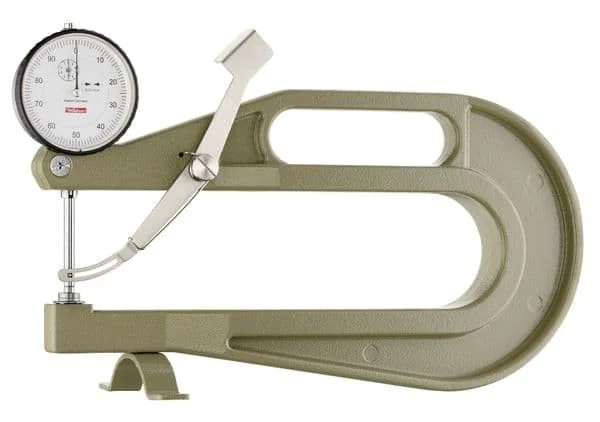

Käfer J 200 is a precision dial thickness gauge with a lifting device, so the contact force is applied independently of the user. The bezel turns for zeroing and the contact points are exchangeable. Made in Germany.
- Reading: 0.01 mm
- Measuring range: 10 mm
- Range per revolution: 1 mm
- Depth of jaw: 200 mm
- Bezel diameter: 58 mm
- Accuracy: to DIN 878
- Contact force: 2.0 N ± 20%
- Standard contact point: form c (Ø10 mm flat)
- Optional contact points: forms a, b, d or e at the same price
Suitable for measuring the thickness of materials such as leather, paperboard, paper, felt, rubber, glass, sheet metal, films, plywood and plastics.
