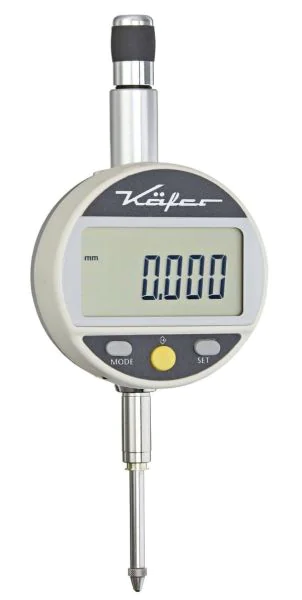

Käfer FMD 25 TB Digital Dial Gauge, Resolution 0.001mm, Range 25mm
Code
FMD 25 TB
Categories: Default Category, Digital Indicators
| Manufacturer | Käfer |
|---|---|
| Range | 25mm |
| Measuring units | Inch-Metric |
| Accuracy | 0.005 mm |
| Display | Digital |
| Resolution | 0.001 mm/0.00005" |
| Stem Diameter | 8mm |
| Measuring Force | 0.7N ±20% |
| Contact Point | M2.5 thread |
| Country of Manufacture | Germany |
Käfer FMD 25 TB is a digital dial gauge made in Germany, with large, easy-to-read numerals. The function and display section rotates through 270°, and the sturdy construction guarantees precision and reliability.
- Resolution: 0.001 mm / 0.00005"
- Measuring range: 25 mm
- Maximum error: 5 µm
- Initial measuring force: 0.7 N ± 20%
- Output: RS 232 / USB
- Power supply: 3 V lithium battery (approx. 8000 h battery life)
- Working temperature: +5 °C to +40 °C
- Stem diameter: 8 mm h6
- Contact point: M2.5 thread
Functions include zero setting, mm/inch selection, data transmission, preset value recall, selection of measuring direction, personalising the functions and Memory/Hold.
The data cable for data transmission is not included and must be ordered separately.
Suitable for precision measurement in inspection, quality control, measuring fixtures and workshop use.
