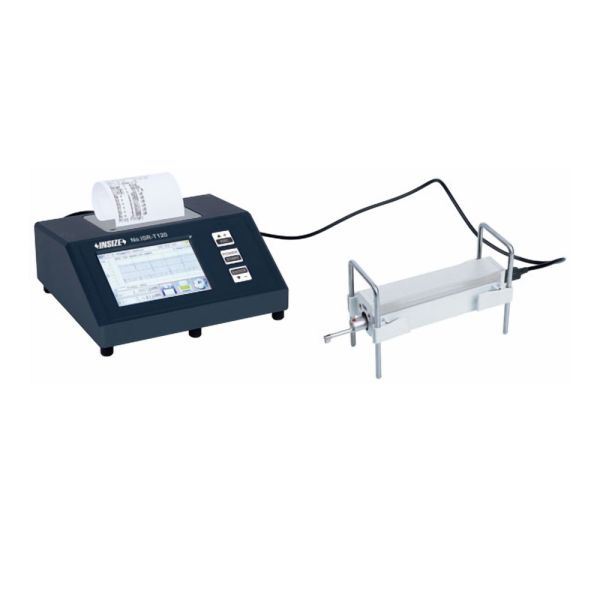

Insize ISR-T120 Roughness Tester with Built-in Printer, Range 640µm, Bluetooth

The Insize ISR-T120 is a roughness tester with a touch screen and built-in printer for measurement results and graphics. It has 22 roughness parameters to ISO, DIN, ANSI and JIS standards, a separable probe unit on a 1 m cable, and can be operated from an Android phone or computer, with data sent to Excel via Bluetooth or SPC cable.

• Range: X axis 17.5 mm, Z axis 640 µm (-320 to +320 µm)
• Accuracy: ±10%
• Resolution (Ra): 0.001 µm
• Probe: inductive, diamond stylus 5 µm/90°, measuring force 4 mN
• Cutoff: 0.25, 0.8, 2.5 mm (1-5 cutoffs)
• Traverse speed: 0.135, 0.5, 1 mm/s
• Memory: 100 results with waveform
• Output: Bluetooth and USB
• Battery: built-in lithium battery, more than 50 hours working time
• Dimensions: 155 x 145 x 58 mm
• Weight: 1000 g
• Standard delivery: main unit, standard probe, calibration block and support, magnetic stand adapter, adjustable stand, touch pen, software and USB cable, AC/DC adapter
• Automatic power off
