Insize ISR-S600 Surface Roughness and Profile Tester, Range 1500µm, 7" Touch Screen
Code
ISR-S600
Categories: Default Category, Surface Finish
| Manufacturer | Insize |
|---|---|
| Measuring units | Inch-Metric |
| Range | 1500µm |
| Stylus Type | Diamond 2µm/90° |
| Cut-off Length | 0.08/0.25/0.8/2.5/8mm |
| Measuring Speed | 0.25/0.5/1mm/s |
| Power Supply | Rechargeable Battery |
| Country of Manufacture | China |

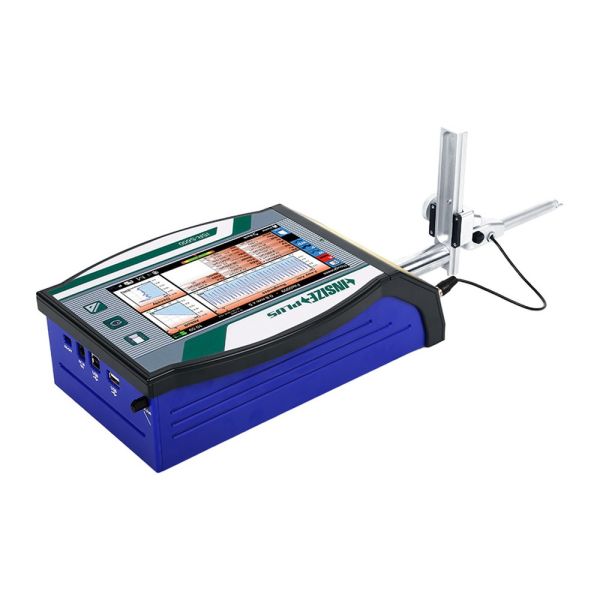

The Insize ISR-S600 is a portable surface roughness and profile tester with a 7-inch colour touch screen, automatic probe levelling and 75 roughness parameters. It measures waviness and curved surfaces (radius over 5 mm) and grit- and shot-blasted surfaces, with a traverse length of up to 59 mm; results can be saved to a USB stick in Excel, PDF, DXF and image formats or printed.
- Roughness range: 1500 µm
- Resolution (Ra): 0.0001 µm
- Roughness probe: inductive, diamond stylus 2 µm/90°, measuring force 4 mN
- Cutoff: 0.08, 0.25, 0.8, 2.5, 8 mm
- Measuring speed: 0.25, 0.5 or 1 mm/s
- Profile range: X axis 59 mm, Z axis 3 mm
- Profile accuracy: X ±(3.5+L/10) µm, Z ±(4+H) µm
- Standards: ISO 4287, ISO 13565, DIN 4768, VDA 2007, JIS B0671, JIS B0601, ASME B46.1, ISO 12085, JIS B0631
- Memory: 4,000 roughness or 1,000 profile results
- Output: USB, Bluetooth
- Dimensions: 320 x 210 x 80 mm
- Weight: 2.2 kg
- Standard delivery: main unit, roughness standard probe, profile standard probe, 2 roughness calibration blocks (Ra 0.1 and 2.97 µm), power adapter
- Height-adjustable probe that rotates -90° to 90°
- Tolerance setting
- Built-in rechargeable battery
