Insize ISR-C300 Roughness Tester (Separable Type), Range 400µm, Stylus 5µm/90°, Bluetooth
Code
ISR-C300
Categories: Default Category, Surface Finish
| Manufacturer | Insize |
|---|---|
| Measuring units | Inch-Metric |
| Range | 400µm |
| Stylus Type | Diamond 5µm/90° |
| Cut-off Length | 0.25/0.8/2.5mm |
| Measuring Speed | 0.135/0.5/1mm/s |
| Accuracy | ±10% |
| Power Supply | Rechargeable Battery |
| Country of Manufacture | China |

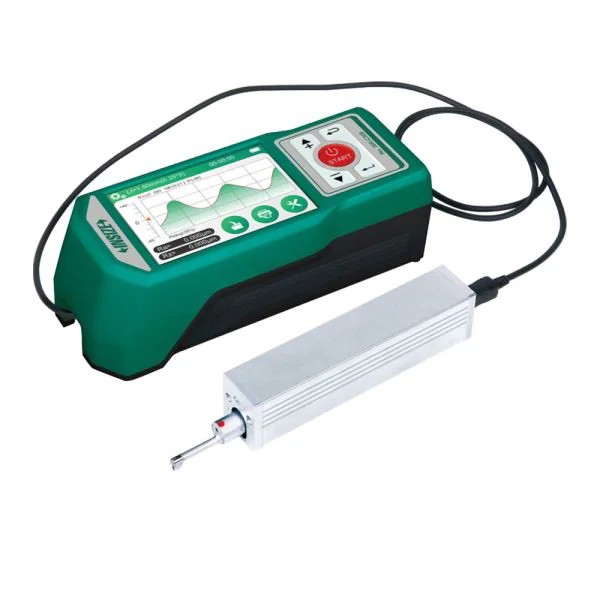

The Insize ISR-C300 is a separable-type roughness tester: the probe unit can be used on its own on a 1 m cable or combined with the main unit. It has a touch screen, 22 roughness parameters to ISO, DIN, ANSI and JIS standards, and can be operated from a phone or computer, with data sent to Excel via Bluetooth or SPC cable.
- Range: X axis 17.5 mm, Z axis 400 µm (-200 to +200 µm)
- Accuracy: ±10%
- Resolution (Ra): 0.001 µm
- Probe: inductive, diamond stylus 5 µm/90°, measuring force 4 mN
- Cutoff: 0.25, 0.8, 2.5 mm (1-5 cutoffs)
- Moving speed: 0.135, 0.5, 1 mm/s
- Memory: 100 results with waveform
- Output: USB and Bluetooth
- Battery: built-in lithium battery, more than 50 hours working time
- Dimensions: 158 x 64 x 52 mm
- Weight: 400 g
- Standard delivery: main unit, standard probe, calibration block and support, long and short connecting cables, magnetic stand adapter, adjustable stand, touch pen, software and USB cable, AC/DC adapter
- Bluetooth printer supported
- Automatic power off
