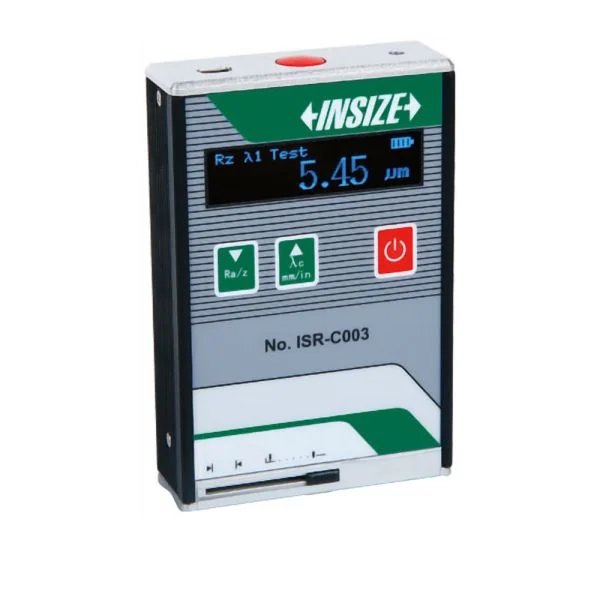

Insize ISR-C003 Roughness Tester (Basic Type), Ra 0.05-15µm, Resolution 0.01µm
Code
ISR-C003
Categories: Default Category, Surface Finish
| Manufacturer | Insize |
|---|---|
| Measuring units | Inch-Metric |
| Range | Ra 0.05-15µm |
| Stylus Type | Diamond 10µm/90° |
| Cut-off Length | 0.25/0.8/2.5mm |
| Measuring Speed | 0.75mm/s |
| Accuracy | ±10% |
| Power Supply | Rechargeable Battery |
| Country of Manufacture | China |
The Insize ISR-C003 is a basic, pocket-sized roughness tester measuring Ra, Rz, Rq and Rt, with a piezoelectric probe and built-in rechargeable battery. It is not suitable for rough turned, milled or planed workpieces.
- Measuring range: Ra, Rq 0.05-15 µm; Rz, Rt 0.1-50 µm
- Accuracy: ±10%
- Resolution (Ra): 0.01 µm
- Probe: piezoelectric, diamond stylus 10 µm/90°, measuring force 5 mN
- Cutoff: 0.25, 0.8, 2.5 mm
- Evaluation length: 1.25 / 4 / 5 mm
- Moving speed: 0.75 mm/s
- Dimensions: 106 x 70 x 24 mm
- Weight: 200 g
- Standard delivery: main unit, calibration block, AC/DC adapter
- Automatic power off
- Optional fixture for small shafts (ISR-C003-FIXTURE, Ø3-20 mm)
