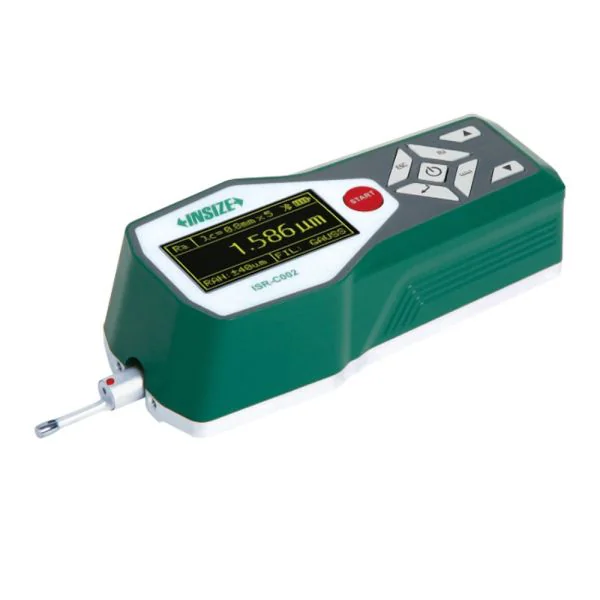

Insize ISR-C002 Roughness Tester, Range 320µm, Bluetooth
Code
ISR-C002
Categories: Default Category, Surface Finish
| Manufacturer | Insize |
|---|---|
| Measuring units | Inch-Metric |
| Range | 320µm |
| Stylus Type | Diamond 5µm/90° |
| Cut-off Length | 0.25/0.8/2.5mm |
| Measuring Speed | 0.5/1mm/s |
| Accuracy | ±10% |
| Power Supply | Rechargeable Battery |
| Country of Manufacture | China |
The Insize ISR-C002 is a roughness tester that can be operated from an Android phone or a computer, with 21 roughness parameters and display of roughness values, profile and curves. Data can be sent to Excel via Bluetooth or SPC cable, and a Bluetooth printer is supported.
- Parameters: Ra, Rz, Rq, Rv, Rp, RS, R3z, R3y, Rt, Rz (JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry (JIS), Rmax
- Range: 320 µm (-160 to +160 µm)
- Accuracy: ±10%
- Resolution (Ra): 0.001 µm
- Probe: inductive, diamond stylus 5 µm/90°, measuring force 4 mN
- Cutoff: 0.25, 0.8, 2.5 mm (1-5 cutoffs)
- Moving speed: 0.5, 1 mm/s
- Memory: 100 results
- Output: Bluetooth and USB
- Dimensions: 141 x 55 x 40 mm
- Weight: 400 g
- Standard delivery: main unit, standard probe, calibration block and support, adjustable stand, probe cover, software and USB cable, AC/DC adapter
- Automatic power off
