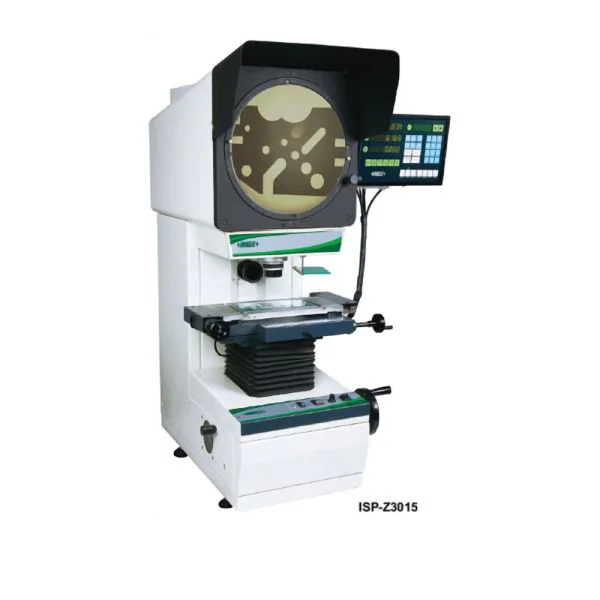

Insize ISP-Z3015 Profile Projector, Ø300mm Screen, Stage Travel 150×50mm

The Insize ISP-Z3015 is a profile projector for precise non-contact measurement and inspection of small parts, with a digital data processing unit.

• Projector screen: Ø300 mm, rotation 0-360°, resolution 1′ or 0.01°, cross-hair reference lines
• Lens: 10X included (view field Ø30 mm, working distance 77.7 mm); optional 20X, 50X, 100X
• Magnification accuracy: ±0.08%
• Image: erect image
• Metal stage: 340×152 mm
• Glass stage: 196×96 mm
• X-Y stage travel: 150×50 mm
• Stage resolution: 0.5 µm
• Stage accuracy: (4+L/25) µm, L = measuring length in mm
• Max. workpiece height: 90 mm
• Z (focus) travel: 90 mm
• Max. stage load: 4 kg
• Illumination: contour and surface, 24V/150W halogen, adjustable brightness
• Power supply: 110/220V, 50/60Hz
• Dimensions (L×W×H): 550×770×1100 mm
• Weight: 135 kg
• Edge detector: not included
• Data output: RS232C
• Data processing: measure coordinates of points and lines, centre and radius of a circle from three points, distance between two objects, angle from four points or two lines, coordinate adjustment and compensation
• Standard delivery: main unit, 10X lens with half-reflection mirror and oblique illuminator mirror, 4 overlay chart clips, foot switch, anti-dust cover, blue filter

Supplied with an Insize inspection certificate.
