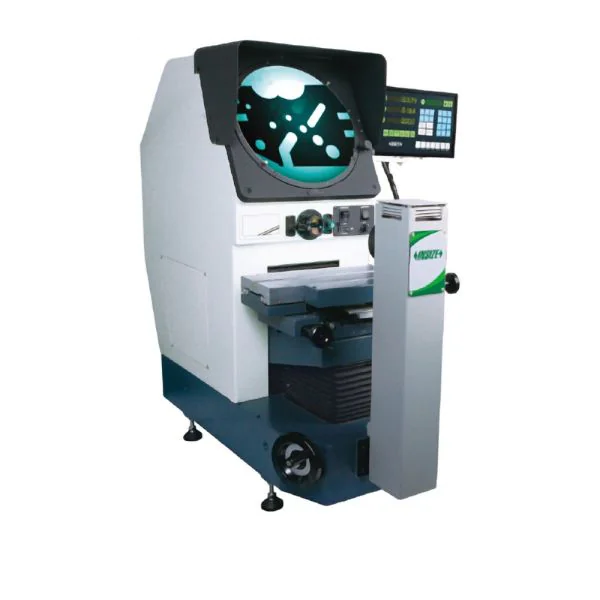

Insize ISP-W3020 Horizontal Profile Projector, Ø300mm Screen, Stage Travel 200×100mm
Code
ISP-W3020
| Manufacturer | Insize |
|---|---|
| XY Stage Size | 400 x 150mm |
| XY Stage Travel Range | 200 x 100mm |
| Swivel Function | ±15° |
| Focusing Method | Manual |
| Max Stage Loading | 50kg |
| Image Orientation | Erect |
| Illumination | Contour and surface |
| Projector Layout | Horizontal, floor-standing |
| Standard Objective | 10X projection lens |
| Country of Manufacture | China |
The Insize ISP-W3020 is a horizontal profile projector for precise non-contact measurement and inspection of small parts, with a digital data processing unit.
- Image: erect image
- Magnification accuracy: ±0.08%
- Illumination: contour: 24V/150W halogen, adjustable brightness; surface: 12V/150W halogen with 2 fibres, adjustable position and brightness
- Power supply: 110/220V, 50/60Hz
- Max. stage load: 50 kg
- Stage resolution: 0.5 µm
- Stage accuracy: (4+L/25) µm, L = measuring length in mm
- Stage turning range: ±15°
- Projector screen: Ø300 mm, rotation 0-360°, resolution 1′ or 0.01°, cross-hair reference lines
- Lens: 10X included (view field Ø30 mm, working distance 77.7 mm); optional 20X, 50X, 100X
- Metal stage: 400×150 mm
- X-Z stage travel: 200×100 mm
- Y (focus) travel: 75 mm
- Dimensions (L×W×H): 830×1090×1010 mm
- Weight: 160 kg
- Edge detector: not included
- Data output: RS232C
- Data processing: measure coordinates of points and lines, centre and radius of a circle from three points, distance between two objects, angle from four points or two lines, set origin, coordinate transform, set midpoint
- Standard delivery: main unit, 10X lens, 4 overlay chart clips, foot switch, anti-dust cover
Supplied with an Insize inspection certificate.
