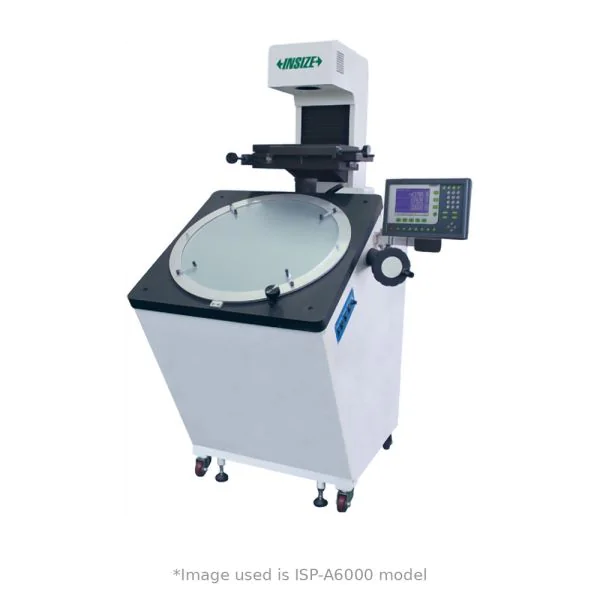

Insize ISP-A6000E Large Screen Profile Projector with Edge Detector, Ø600mm Screen, Stage Travel 200×100mm
Code
ISP-A6000E
| Manufacturer | Insize |
|---|---|
| XY Stage Size | 404 x 265mm |
| XY Stage Effective Area | 270 x 170mm |
| XY Stage Travel Range | 200 x 100mm |
| Focusing Method | Manual |
| Max Stage Loading | 5kg |
| Image Orientation | Erect |
| Illumination | Contour and surface |
| Projector Layout | Vertical, floor-standing |
| Standard Objective | 10X projection lens |
| Country of Manufacture | China |
The Insize ISP-A6000E is a large screen profile projector with edge detector for precise non-contact measurement and inspection of small parts, with a digital data processing unit.
- Projector screen: Ø600 mm, rotation 0-360°, resolution 1′ or 0.01°, cross-hair reference lines
- Lens: 10X included (view field Ø60 mm, working distance 143.2 mm); optional 5X, 20X, 50X, 100X
- Magnification accuracy: ±0.08%
- Image: erect image
- Metal stage: 404×265 mm
- Glass stage: 270×170 mm
- X-Y stage travel: 200×100 mm
- Stage resolution: 0.5 µm
- Stage accuracy: (3+L/50) µm, L = measuring length in mm
- Z (focus) travel: 50 mm
- Max. stage load: 5 kg
- Illumination: contour: 24V/150W halogen, adjustable brightness; surface: 12V/150W halogen with 2 fibres, adjustable position and brightness
- Data output: RS232C, USB (data output to Excel and CAD)
- Data processing: measure coordinates of points and lines, centre and radius of a circle from three points, distance between two objects, angle from four points or two lines, coordinate transform, and automatic selection of the measurement object; programming for batch measurements
- Power supply: 110/220V, 50/60Hz
- Dimensions (L×W×H): 1200×1140×1940 mm
- Weight: 360 kg
- Edge detector: included
- Standard delivery: main unit, 10X lens, foot switch, software and USB cable, 4 overlay chart clips, anti-dust cover
- Ø600 mm projector screen with focus wheel and illumination control panel
- Digital readout with touch buttons and diagram display
Supplied with an Insize inspection certificate.
