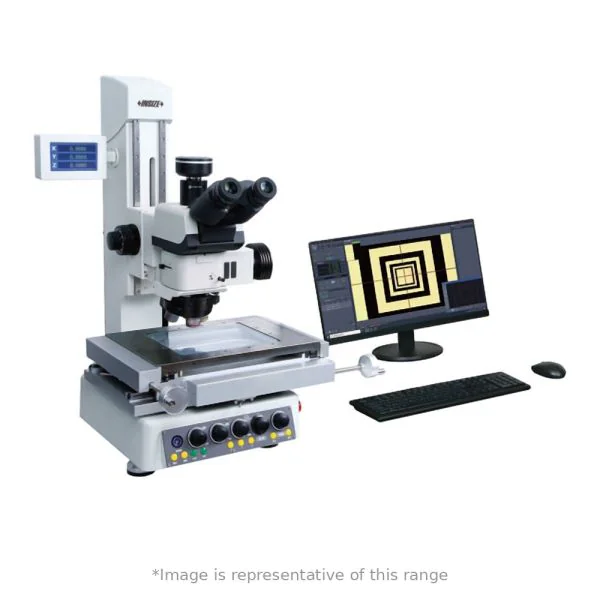

Insize ISD-TM320 High Magnification Toolmaker Measuring Microscope, Stage Travel 300×200mm

The Insize ISD-TM320 is a high magnification toolmaker measuring microscope for precise optical measurement and inspection of tools and small parts.

• Z axis travel: 210 mm
• Z axis drive: manual coarse and fine adjustment, motorised coarse and fine adjustment
• Resolution of X/Y/Z axis: 0.1 µm
• Accuracy of X/Y axis: ≤(2.5+L/50) µm, L = measuring length in mm
• Repeatability of X/Y axis: 2 µm
• Optical magnification: 50X-500X (up to 1000X with optional 100X objective)
• Digital magnification: 150X-1500X on 23.8" monitor (up to 3000X with optional 100X objective)
• Eyepiece: large-field SWH10X-H (view field 25 mm), adjustable visibility, with crossline
• Objectives (included): 5X, 10X, 20X and 50X semi-apochromatic, coaxial vertical light, bright and dark field
• Illumination: critical/Köhler illumination, supporting bright field, polarized light, dark field and other lighting methods
• Observation tube: 15-45° adjustable, inverse image, adjustable distance 45-78 mm, 0/100 or 100/0 binocular
• Diopter adjustment: ±5 diopter (two eyepieces)
• Max. workpiece weight: 30 kg
• Power supply: 110-220V, 50/60Hz
• X/Y axis travel: 300×200 mm
• Metal stage: 500×350 mm
• Glass stage: 350×250 mm
• Dimensions (L×W×H): 680×645×785 mm
• Weight: 150 kg
• Standard delivery: main unit, anti-dust cover, 0.63X camera adapter (adjustable focus), 20 MP camera, measuring software
• ECGO infinite chromatic aberration correction optical system
• High-density super power white LED chip array with high colour rendering index
• High-precision linear scales
• Motorised objective switching and supporting light intensity management
• Motorised Z axis and focusing assist
• Measuring software with in-field image measurement, quick reading, out-of-image measurement for large workpieces and vector layer construction

Supplied with an Insize inspection certificate.
