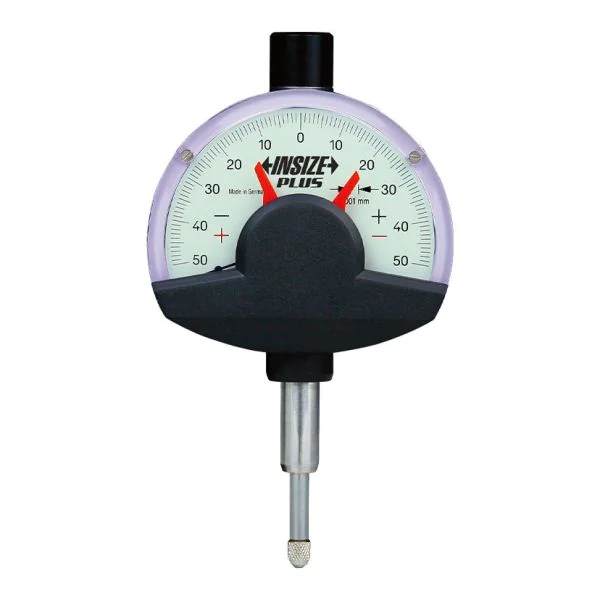

Insize 2881-01 Dial Comparator, Graduation 0.001mm, Range 0.1mm, Flat Back
Code
2881-01
Categories: Default Category, Dial Indicators
| Manufacturer | Insize |
|---|---|
| Range | 0-0.1mm |
| Dial Reading | 50-0-50 |
| Measuring units | Metric |
| Accuracy | 1.2 µm |
| Stem Diameter | 8mm |
| Measuring Force | 1.5N |
| Contact Point | M2.5 thread |
Insize 2881-01 is a shockproof dial comparator for high-accuracy comparative measurement, supplied with a manufacturer inspection certificate.
- Measuring range: 0.1 mm
- Graduation: 0.001 mm
- Accuracy: 1.2 µm
- Hysteresis: 0.5 µm
- Dial reading: 50-0-50
- Overtravel: 3 mm
- Initial measuring force: 1.2 N
- Maximum measuring force: 1.5 N
- Cap: cannot be lifted
- Back: flat back
- Stem diameter: 8 mm
- Contact point thread: M2.5 × 0.45
- Standard: meets DIN 879-1
Features include a shockproof movement, jewelled bearing, shadow-free dial face cover and limit pointers. An optional lifting lever (6289-150) is available.
Suitable for comparative measurement, inspection and quality control.
