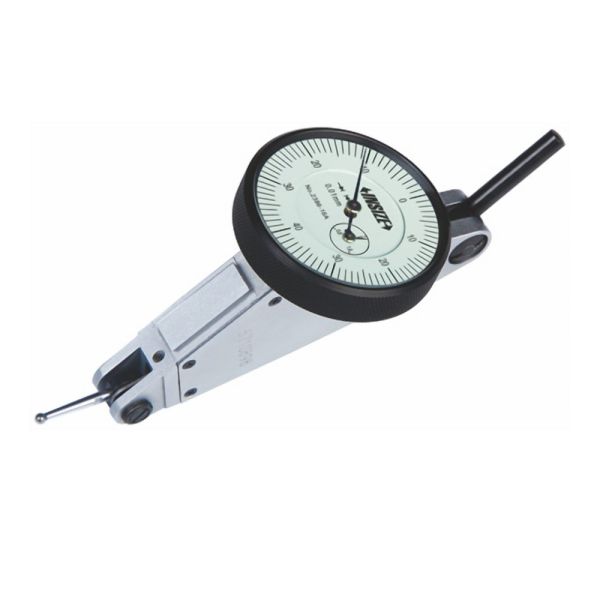

Insize 2386-16A Large Range Dial Test Indicator, Graduation 0.01mm, Range 1.6mm, Ø37mm Dial
Code
2386-16A
Categories: Default Category, Lever Indicators
| Range | 0-1.6mm |
|---|---|
| Display | Analogue |
| Measuring units | Metric |
| Graduation | 0.01mm |
| Stem Diameter | 8mm |
| Dial Face Diameter | 37mm |
| Circular Scale Dial | 0-40-0 |
| Accuracy | 25 µm |
| Stylus Length | 13.5mm |
| Manufacturer | Insize |
Insize 2386-16A is a large range dial test indicator for checks where a standard DTI range is not enough, with a jewelled bearing, carbide contact point and two measuring directions. The anti-magnetic body protects readings from magnetic interference.
- Graduation: 0.01 mm
- Measuring range: 1.6 mm
- Accuracy: 25 µm
- Hysteresis: 8 µm
- Dial reading: 0-40-0
- Bezel diameter: 37 mm
- Stylus length: 13.5 mm
- Type: horizontal type
Supplied with two clamps (Ø4 mm and Ø8 mm) for mounting, and a manufacturer inspection certificate.
Suitable for run-out, concentricity, alignment and comparative measurement on machine tools and in inspection.
