Insize 2136-10 High Precision Digital Indicator IP54, Resolution 0.0005mm/0.00002", Range 12.7mm/0.5", Flat Back
Code
2136-10
Categories: Default Category, Digital Indicators
| Manufacturer | Insize |
|---|---|
| Range | 12.7 mm |
| Measuring units | Inch-Metric |
| Accuracy | 2 µm |
| Display | Digital |
| Resolution | 0.0005 mm/0.00002" |
| Stem Diameter | 8mm |
| Measuring Force | 1.5N |
| Contact Point | M2.5 thread |

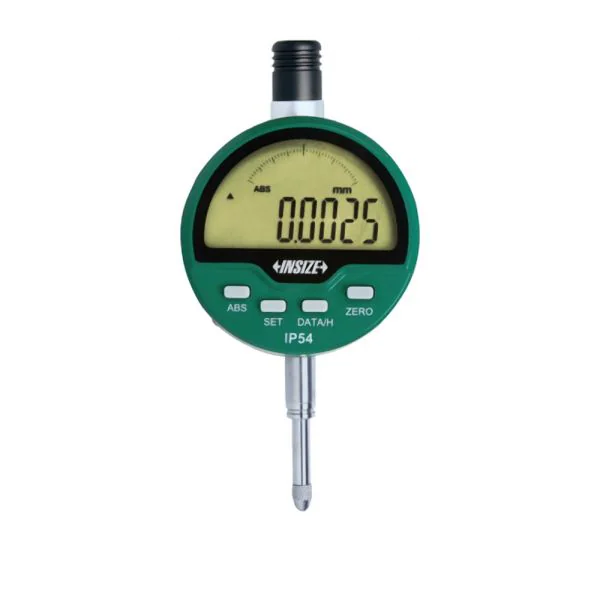

Insize 2136-10 is a high precision digital indicator IP54 for comparative measurement and inspection, supplied with a manufacturer inspection certificate.
- Measuring range: 0-12.7 mm / 0-0.5"
- Resolution: 0.0005 mm/0.00002"
- Accuracy: 2 µm
- Hysteresis: 1.5 µm
- Maximum measuring force: 1.5 N
- Cap: can be lifted
- Back: flat back
- Protection: IP54
- Stem diameter: 8 mm
- Contact point thread: M2.5 × 0.45
Features include IP54 protection, an absolute encoder, a display that rotates 270°, tolerance Go/No-Go display, max./min./TIR measurement, USB data output and a rechargeable battery for 30 hours continuous working.
Suitable for comparative measurement, run-out checks, inspection and quality control.
