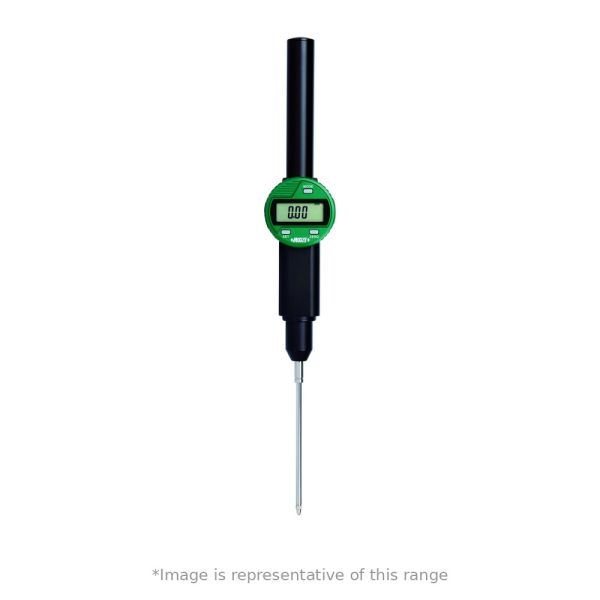

Insize 2117-1001 Large Stroke Digital Indicator, Resolution 0.001mm/0.00005", Range 100mm/4", Lug Back
Code
2117-1001
Categories: Default Category, Digital Indicators
| Manufacturer | Insize |
|---|---|
| Range | 100mm |
| Measuring units | Inch-Metric |
| Accuracy | 9 µm |
| Display | Digital |
| Resolution | 0.001 mm/0.00005" |
| Stem Diameter | 8mm |
| Measuring Force | 3.2N |
| Contact Point | M2.5 thread |
Insize 2117-1001 is a large stroke digital indicator for comparative measurement and inspection, supplied with a manufacturer inspection certificate.
- Measuring range: 0-100 mm / 0-4"
- Resolution: 0.001 mm/0.00005"
- Accuracy: 9 µm
- Hysteresis: 3 µm
- Maximum measuring force: 3.2 N
- Cap: cannot be lifted
- Back: lug back
- Stem diameter: 8 mm
- Contact point thread: M2.5 × 0.45
Features include a 100 mm stroke, tolerance display, max./min./TIR measurement, data output and CR2032 battery.
Suitable for comparative measurement, run-out checks, inspection and quality control.
