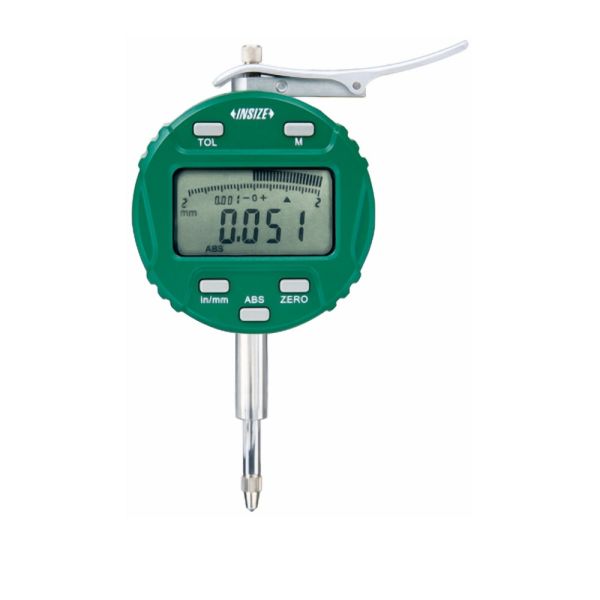

Insize 2109-101 Digital Indicator with Lifting Lever, Resolution 0.001mm/0.00005", Range 10mm/0.4", Flat Back
Code
2109-101
Categories: Default Category, Digital Indicators
| Manufacturer | Insize |
|---|---|
| Range | 10 mm |
| Measuring units | Inch-Metric |
| Accuracy | 5 µm |
| Display | Digital |
| Resolution | 0.001 mm/0.00005" |
| Stem Diameter | 8mm |
| Measuring Force | 1.5N |
| Contact Point | M2.5 thread |
Insize 2109-101 is a digital indicator with lifting lever for comparative measurement and inspection, supplied with a manufacturer inspection certificate.
- Measuring range: 0-10 mm / 0-0.4"
- Resolution: 0.001 mm/0.00005"
- Accuracy: 5 µm
- Hysteresis: 2 µm
- Maximum measuring force: 1.5 N
- Back: flat back
- Stem diameter: 8 mm
- Contact point thread: M2.5 × 0.45
Features include a lifting lever, reading in digital and analog, a display that rotates 320°, tolerance Go/No-Go display, max./min./TIR measurement and data output.
Suitable for comparative measurement, run-out checks, inspection and quality control.
