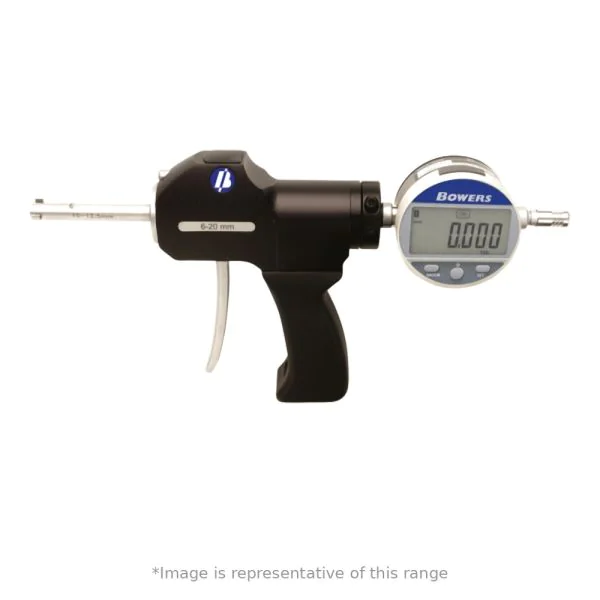

Bowers SXTHSY11M-BT XTHSY Pistol Grip Bore Micrometer Set with Digital Indicator, Range 20-100mm, Resolution 0.001mm, 6 Heads, Bluetooth, with Setting Rings
Code
SXTHSY11M-BT
Categories: Default Category, Bore Micrometer Sets
| Manufacturer | Bowers |
|---|---|
| Display | Digital |
| Measuring units | Inch-Metric |
| Accuracy | ±5 µm |
| Range | 20-100mm |
| Resolution | 0.001mm |
| Standard | DIN 863-4 |
| Country of Manufacture | United Kingdom |
The Bowers SXTHSY11M-BT is a boxed XTHSY pistol grip bore micrometer set, for those who want pistol-grip ergonomics with a large digital indicator. The LCD digital indicator fits into a standard 8 mm clamping shaft at the rear of the pistol grip.
Supplied with setting rings.
- Measuring range: 20-100 mm
- Resolution: 0.001 mm / 0.00005"
- Accuracy: ±0.005 mm
- Measuring depth: 66-82 mm
- Measuring heads: 6 (20-25 mm, 25-35 mm, 35-50 mm, 50-65 mm, 65-80 mm, 80-100 mm)
- Setting rings: included
- Ergonomically designed pistol grip body
- 2 preset memories, tolerance indicator lights and mm/inch conversion
- Proximity RS-232 and powered Opto output
- Self-centring measuring heads with tungsten carbide contact points above 12.5 mm
- Blind bore measurement above 12.5 mm
- Built-in Bluetooth
- Manufactured to DIN 863 part 4
Made in Britain by Bowers Group.
