Bowers SXTA5M XT Analogue Bore Micrometer Set, Range 20-50mm, Graduation 0.005mm, 3 Heads, with Setting Rings
Code
SXTA5M
Categories: Default Category, Bore Micrometer Sets
| Manufacturer | Bowers |
|---|---|
| Display | Analogue |
| Measuring units | Metric |
| Range | 20-50mm |
| Graduation | 0.005mm |
| Standard | DIN 863-4 |
| Country of Manufacture | United Kingdom |

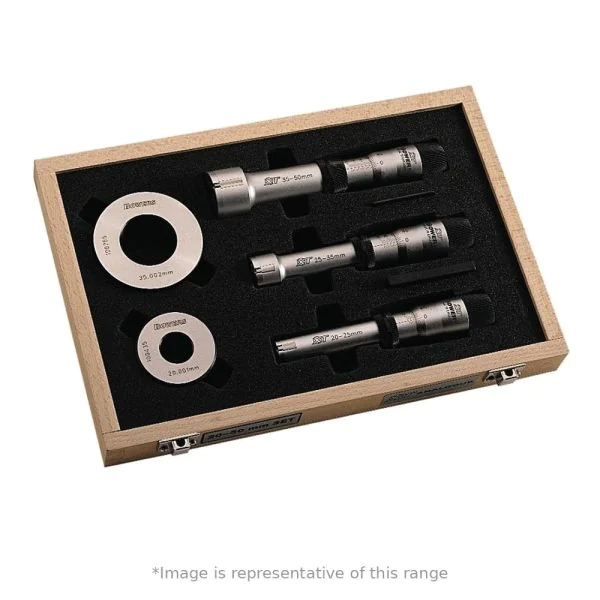

The Bowers SXTA5M is an XT analogue bore micrometer set covering 20-50 mm, with 3 interchangeable measuring heads and setting rings, supplied in a fitted case. The extended mechanical travel of the XT range means the measuring anvils never need changing.
Supplied with 2 setting rings (20 mm, 35 mm).
- Measuring range: 20-50 mm
- Graduation: 0.005 mm
- Measuring heads: 3 (20-25 mm, 25-35 mm, 35-50 mm)
- Setting rings: 2 (20 mm, 35 mm), included
- 3-point self-centring measurement
- Tungsten carbide measuring faces
- Suitable for blind bore measurement
- Extensions available for deep hole measurement
- Ratchet stop for consistent measuring force
- Manufactured to DIN 863 part 4
Made in Britain by Bowers Group.
